Reassembly [04/2018 - ]: Procedure

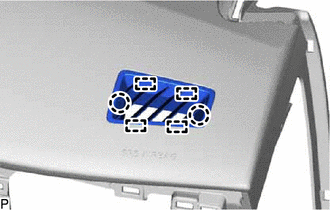

  1. INSTALL NO. 2 SIDE DEFROSTER NOZZLE
    1. Engage the 4 guides and 2 claws to install the No. 2 side defroster nozzle.
      GTY869074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

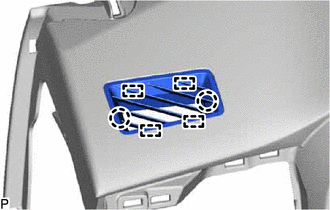

  2. INSTALL NO. 1 SIDE DEFROSTER NOZZLE
    1. Engage the 4 guides and 2 claws to install the No. 1 side defroster nozzle.
      GTY932982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INSTRUMENT PANEL CUSHION
    1. Clean the instrument panel safety pad sub-assembly surface.
      1. Remove any remaining double-sided tape from the instrument panel safety pad sub-assembly.
      2. Wipe off any tape adhesive residue with cleaner.
    2. Remove the release paper from a new instrument panel cushion.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

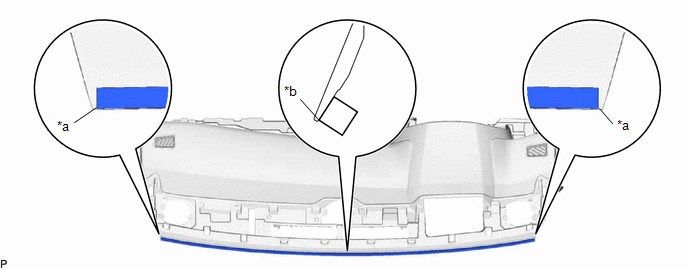

    3. Install the instrument panel cushion as shown in the illustration.
      GTY937880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Edge of Curved Surface *b Outline

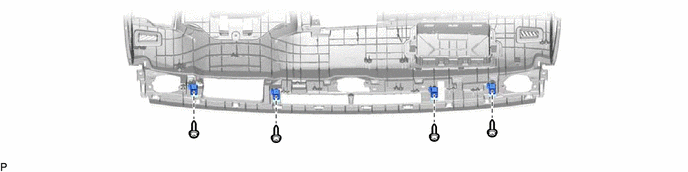

  4. INSTALL NO. 1 INSTRUMENT PANEL PIN
    1. Install the 4 No. 1 instrument panel pins with the 4 screws <C>.
      GTY869062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

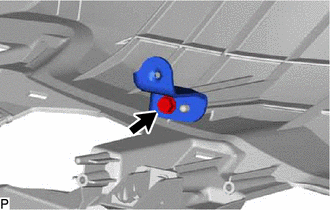

  5. INSTALL NO. 2 METER BRACKET SUB-ASSEMBLY (w/ Headup Display)
    1. Install the No. 2 meter bracket sub-assembly with the screw <C>.
      GTY869067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

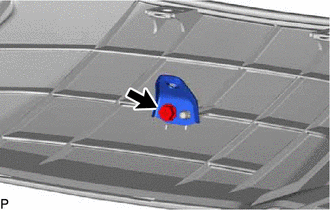

  6. INSTALL NO. 1 METER BRACKET SUB-ASSEMBLY
    1. Install the No. 1 meter bracket sub-assembly with the screw <C>.
      GTY869065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 3 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 3 [08/2020 - ]

  8. INSTALL NO. 4 ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

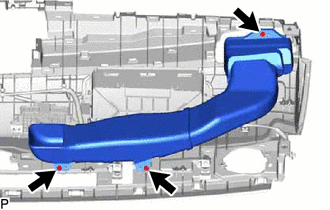

  9. INSTALL NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Install the No. 3 heater to register duct sub-assembly with the 3 screws <C>.
      GTY869041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

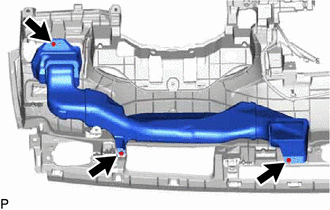

  10. INSTALL NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Install the No. 1 heater to register duct sub-assembly with the 3 screws <C>.
      GTY869039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL METER MIRROR SUB-ASSEMBLY (w/ Headup Display)

    Refer to PROCEDURE - Step 2

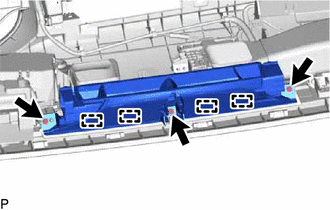

  12. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. GTY869043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the 4 guides.

    2. Install the defroster nozzle assembly with the 3 screws <C>.

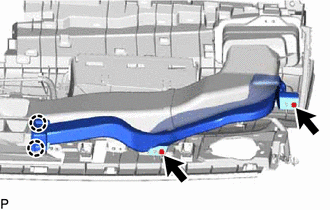

  13. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Engage the 2 claws.
      GTY932976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 side defroster nozzle duct with the 2 screws <C>.

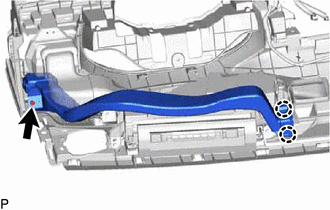

  14. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. Engage the 2 claws.
      GTY932975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 1 side defroster nozzle duct with the screw <C>.
  15. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 2
