Installation [08/2020 - ]: Procedure

  1. INSTALL NAVIGATION ANTENNA BRACKET
  2. INSTALL NAVIGATION ANTENNA ASSEMBLY

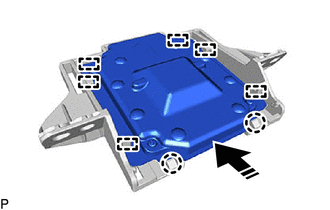

    1. Engage the 6 guides and 2 claws to install the navigation antenna assembly as shown in the illustration.
      GTY988715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET
    1. Install the navigation antenna assembly with bracket with the 2 screws.
    2. Engage the 2 claws.
    3. Connect the connector.
  4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [04/2018 - ]
