Disassembly [04/2018 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 5 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - ]

  2. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. Remove the screw <C>.
      GTY932975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the No. 1 side defroster nozzle duct.
  3. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Remove the 2 screws <C>.
      GTY932976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the No. 2 side defroster nozzle duct.
  4. REMOVE DEFROSTER NOZZLE ASSEMBLY
    1. Remove the 3 screws <C>.
      GTY869043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 guides to remove the defroster nozzle assembly.
  5. REMOVE METER MIRROR SUB-ASSEMBLY (w/ Headup Display)

    Refer to PROCEDURE - Step 5 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - ]

  6. REMOVE NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Remove the 3 screws <C> and No. 1 heater to register duct sub-assembly.
      GTY869039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Remove the 3 screws <C> and No. 3 heater to register duct sub-assembly.
      GTY869041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 4 ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 - ]

  9. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 2 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 2 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 2 [08/2021 - ]

  10. REMOVE NO. 1 METER BRACKET SUB-ASSEMBLY
    1. Remove the screw <C> and No. 1 meter bracket sub-assembly.
      GTY869065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 METER BRACKET SUB-ASSEMBLY (w/ Headup Display)
    1. Remove the screw <C> and No. 2 meter bracket sub-assembly.
      GTY869067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 INSTRUMENT PANEL PIN
    1. Remove the 4 screws <C> and 4 No. 1 instrument panel pins.
      GTY869062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

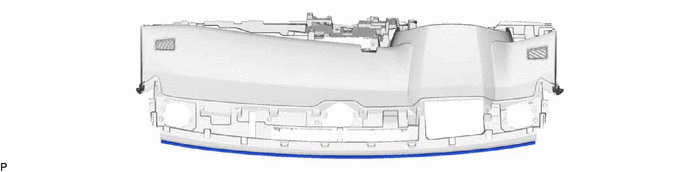

  13. REMOVE INSTRUMENT PANEL CUSHION
    1. Remove the instrument panel cushion.
      GTY869071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 SIDE DEFROSTER NOZZLE
    1. Disengage the 2 claws and 4 guides to remove the No. 1 side defroster nozzle.
      GTY932982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 SIDE DEFROSTER NOZZLE
    1. Disengage the 2 claws and 4 guides to remove the No. 2 side defroster nozzle.
      GTY869074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
