Removal [08/2020 - 08/2021]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [04/2018 - 08/2021]

  2. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

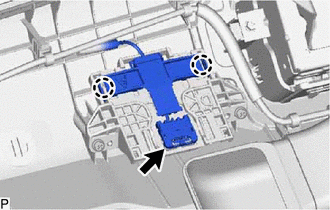

    1. Disconnect the connector.
      GTY925170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws.

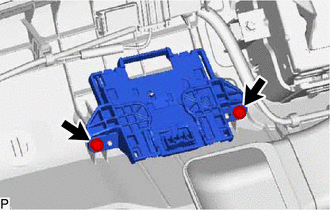

    3. Remove the 2 screws and navigation antenna assembly with bracket.
      GTY945382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NAVIGATION ANTENNA ASSEMBLY

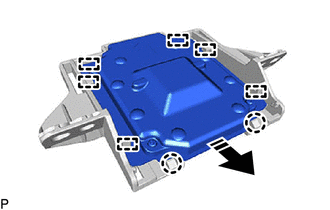

    1. Disengage the 2 claws and 6 guides to remove the navigation antenna assembly as shown in the illustration.
      GTY988077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE NAVIGATION ANTENNA BRACKET
