Removal [04/2018 - 08/2020]: Procedure
- PRECAUTION NOTE:
After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [04/2018 - ]
- REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 2 [04/2018 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - 08/2021]
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for A25A-FXS:
Refer to PROCEDURE - Step 3 [04/2018 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - 08/2021]
for 2GR-FKS:
Refer to PROCEDURE - Step 2
- REMOVE REAR DOOR ARMREST COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE REAR DOOR TRIM ASSEMBLY COVER
Refer to PROCEDURE - Step 5
- REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
Refer to PROCEDURE - Step 6
- REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- REMOVE REAR DOOR NO. 1 TRIM BRACKET
Refer to PROCEDURE - Step 16
- REMOVE REAR DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 17
- REMOVE REAR DOOR INNER GLASS WEATHERSTRIP
Refer to PROCEDURE - Step 18
- REMOVE REAR DOOR NO. 2 SERVICE HOLE COVER
Refer to PROCEDURE - Step 19
- REMOVE REAR DOOR GLASS RUN
Refer to PROCEDURE - Step 21
- REMOVE REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY
Refer to PROCEDURE - Step 22
- DISCONNECT REAR DOOR WEATHERSTRIP
Refer to PROCEDURE - Step 14
- REMOVE REAR DOOR REAR GUIDE SEAL
Refer to PROCEDURE - Step 26
- REMOVE REAR DOOR GLASS SUB-ASSEMBLY
Refer to PROCEDURE - Step 27
- REMOVE REAR DOOR CHECK ASSEMBLY
Refer to PROCEDURE - Step 24
- REMOVE REAR DOOR WEATHERSTRIP
Refer to PROCEDURE - Step 25
- REMOVE REAR DOOR FRAME GARNISH
Refer to PROCEDURE - Step 23

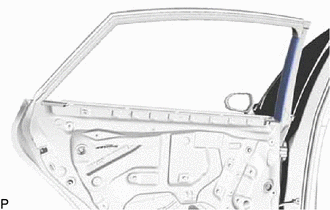

- REMOVE NO. 1 BLACK OUT TAPE
HINT:
When removing the No. 1 black out tape, heat the vehicle body and No. 1 black out tape using a heat light.
HEATING TEMPERATUREItem Temperature No. 1 Black Out Tape and Vehicle Body 40 to 60°C (104 to 140°F) WARNING:- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the vehicle body excessively.

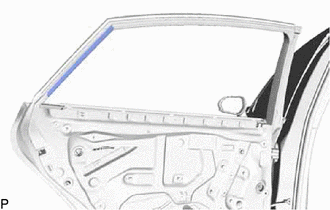

- REMOVE NO. 3 BLACK OUT TAPE
HINT:
When removing the No. 3 black out tape, heat the vehicle body and No. 3 black out tape using a heat light.
HEATING TEMPERATUREItem Temperature No. 3 Black Out Tape and Vehicle Body 40 to 60°C (104 to 140°F) WARNING:- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the vehicle body excessively.

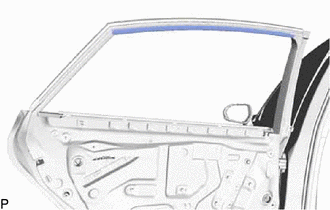

- REMOVE NO. 2 BLACK OUT TAPE
HINT:
When removing the No. 2 black out tape, heat the vehicle body and No. 2 black out tape using a heat light.
HEATING TEMPERATUREItem Temperature No. 2 Black Out Tape and Vehicle Body 40 to 60°C (104 to 140°F) WARNING:- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the vehicle body excessively.
