Removal [04/2018 - 08/2020]: Procedure
- PRECAUTION NOTE:
After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [04/2018 -]
- REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 2 [04/2018 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - 08/2021]
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for A25A-FXS:
Refer to PROCEDURE - Step 3 [04/2018 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - 08/2021]
for 2GR-FKS:
Refer to PROCEDURE - Step 2
- REMOVE REAR DOOR ARMREST COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE REAR DOOR TRIM ASSEMBLY COVER
Refer to PROCEDURE - Step 5
- REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
Refer to PROCEDURE - Step 6
- REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- REMOVE REAR DOOR NO. 1 TRIM BRACKET
Refer to PROCEDURE - Step 16
- REMOVE REAR DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 17
- REMOVE REAR DOOR INNER GLASS WEATHERSTRIP
Refer to PROCEDURE - Step 18
- REMOVE REAR DOOR NO. 2 SERVICE HOLE COVER
Refer to PROCEDURE - Step 19
- REMOVE REAR DOOR GLASS RUN
Refer to PROCEDURE - Step 21
- REMOVE REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY
Refer to PROCEDURE - Step 22
- DISCONNECT REAR DOOR WEATHERSTRIP
- Disengage the clip and disconnect the rear door weatherstrip until the screws of the rear door rear guide seal is visible.
- REMOVE REAR DOOR REAR GUIDE SEAL
Refer to PROCEDURE - Step 26
- REMOVE REAR DOOR GLASS SUB-ASSEMBLY
Refer to PROCEDURE - Step 27
- REMOVE REAR DOOR WINDOW REGULATOR ASSEMBLY
Refer to PROCEDURE - Step 28

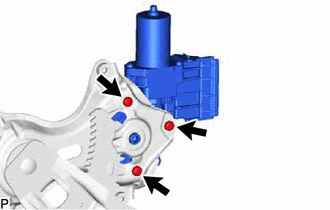

- REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY
