Reassembly [04/2018 -]: Procedure

  1. INSTALL REAR SPOILER SUB-ASSEMBLY (w/ Rear Spoiler)

    Refer to PROCEDURE - Step 1

  2. INSTALL LICENSE PLATE LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

    HINT:

    Use the same procedure as for the LH side.

  3. INSTALL TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL LUGGAGE ELECTRICAL KEY SWITCH

    See step  1

  5. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. INSTALL NO. 2 BACK DOOR OUTSIDE GARNISH

    Refer to PROCEDURE - Step 2

  7. INSTALL REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  8. INSTALL REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  9. INSTALL HOLE PLUG

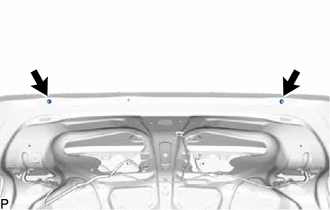

    1. Install 2 new hole plugs.
      GTY933849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL LUGGAGE COMPARTMENT DOOR CUSHION

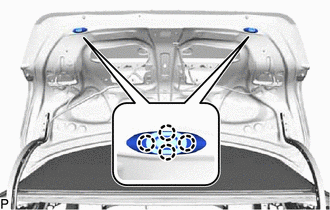

    1. Engage the 8 claws to install 2 new luggage compartment door cushions.
      GTY867492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

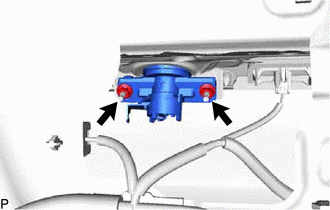

    1. Install the luggage compartment door lock cylinder assembly with the 2 nuts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      GTY932628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - Step 3

  13. INSTALL BACK DOOR UPPER HINGE PROTECTOR LH

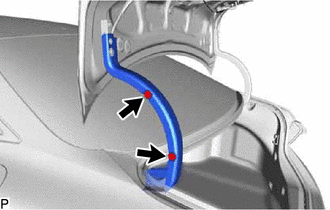

    1. Install the back door upper hinge protector LH with the 2 clips.
      GTY867491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL BACK DOOR UPPER HINGE PROTECTOR RH

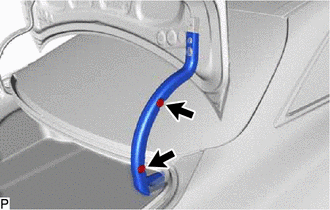

    1. Install the back door upper hinge protector RH with the 2 clips.
      GTY867488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL LUGGAGE COMPARTMENT DOOR COVER

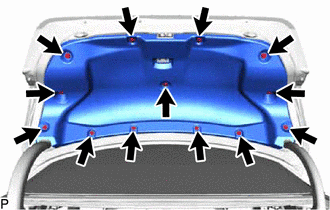

    1. Install the luggage compartment door cover with the 13 clips.
      GTY867490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. PERFORM CALIBRATION (w/ Parking Assist Monitor System)

    for Gasoline Model:

    Refer to CALIBRATION [04/2018 -]

    for HV Model:

    Refer to CALIBRATION [04/2018 -]

  17. PERFORM CALIBRATION (w/ Panoramic View Monitor System)

    for Gasoline Model:

    Refer to CALIBRATION [04/2018 -]

    for HV Model:

    Refer to CALIBRATION [04/2018 -]
