Disassembly [04/2018 -]: Procedure

  1. REMOVE HOOD TO RADIATOR SUPPORT SEAL

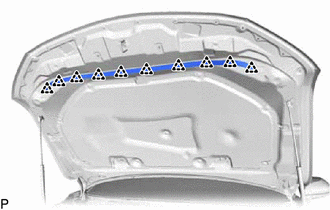

    1. Using a clip remover, disengage the 10 hood to radiator support seal clips to remove the hood to radiator support seal.
      GTY862727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 10 hood to radiator support seal clips from the hood to radiator support seal.
  2. REMOVE HOOD INSULATOR

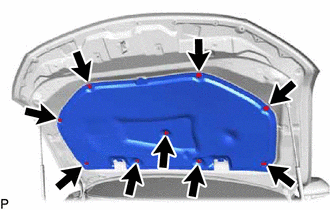

    1. Using a clip remover, remove the 9 hood insulator clips.
      GTY862728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

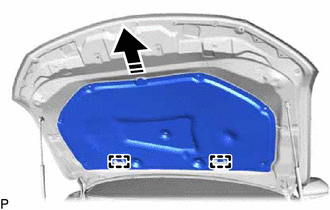

    2. Disengage the 2 guides to remove the hood insulator as shown in the illustration.
      GTY889947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. DISCONNECT WASHER HOSE ASSEMBLY

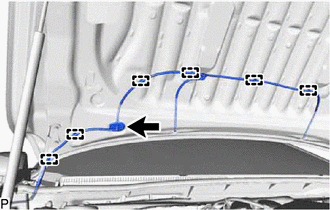

    1. Disengage the 6 clamps.
      GTY862729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the grommet to disconnect the washer hose assembly.
  5. REMOVE HOOD SUPPORT ASSEMBLY LH

    See step  1

  6. REMOVE HOOD STAY BRACKET LH

    See step  2

  7. REMOVE HOOD SUPPORT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE HOOD STAY BRACKET RH

    HINT:

    Use the same procedure as for the LH side.
