Removal [04/2018 -]: Procedure
- REMOVE WASHER NOZZLE SUB-ASSEMBLY

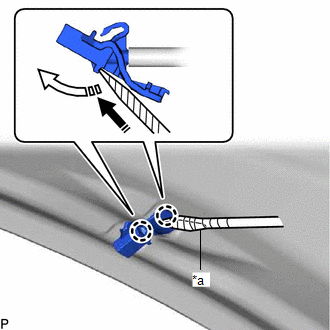

- Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration to separate the washer nozzle sub-assembly.
*a Protective Tape Remove in this Direction (1) Remove in this Direction (2) NOTE:Be careful not to damage the windshield glass.
- Disconnect the washer hose to remove the washer nozzle sub-assembly.NOTE:
Washer nozzle sub-assemblies cannot be reused.
- Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration to separate the washer nozzle sub-assembly.
