Removal [08/2021 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [08/2021 - ]

  2. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH

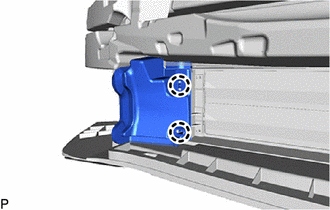

    1. Disengage the 2 claws to remove the front radiator side air guide plate RH.
      GTY1026327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH

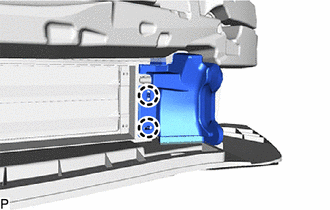

    1. Disengage the 2 claws to remove the front radiator side air guide plate LH.
      GTY1026328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE THERMISTOR ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE RADIATOR SHUTTER SUB-ASSEMBLY

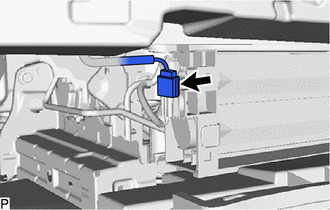

    1. Disconnect the connector.
      GTY1026425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

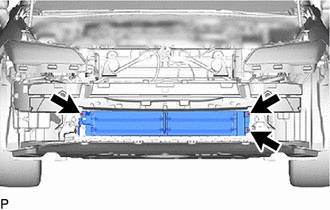

    2. Remove the 3 bolts.
      GTY1026330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

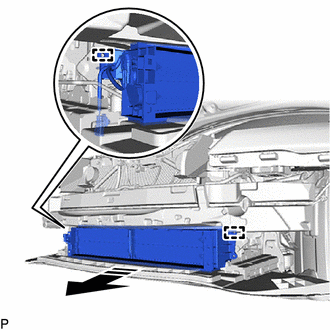

    3. Disengage the 2 guides to remove the radiator shutter sub-assembly as shown in the illustration.
      GTY1026332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
