Removal [08/2021 -]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [08/2021 -]

  2. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH
    1. Disengage the 2 claws to remove the front radiator side air guide plate LH.
      GTY1026631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE THERMISTOR ASSEMBLY

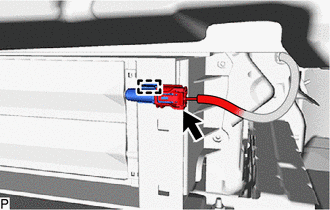

    1. Disengage the clamp.
      GTY1026632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the thermistor assembly.
