Removal [04/2018 - 08/2021]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [04/2018 - 08/2021]

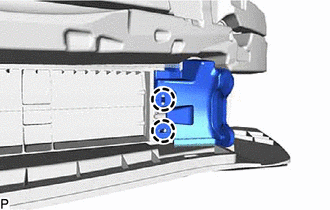

  2. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH
    1. Disengage the 2 claws to remove the front radiator side air guide plate LH.
      GTY864350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

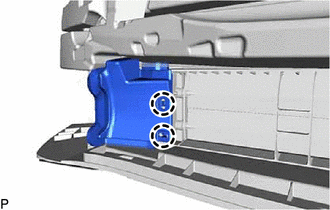

  3. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH
    1. Disengage the 2 claws to remove the front radiator side air guide plate RH.
      GTY864349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE THERMISTOR ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE RADIATOR SHUTTER SUB-ASSEMBLY

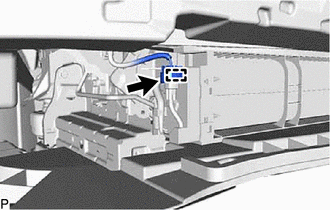

    1. Disconnect the connector.
      GTY931943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

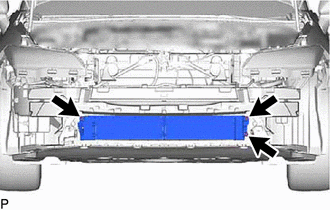

    2. Disengage the clamp.
    3. Remove the 3 bolts.
      GTY864348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

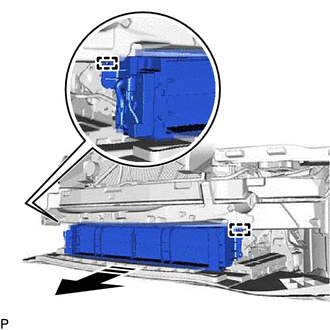

    4. Disengage the 2 guides to remove the radiator shutter sub-assembly as shown in the illustration.
      GTY909838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
