Removal [04/2018 - 08/2021]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [04/2018 - 08/2021]

  2. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH
    1. Disengage the 2 claws to remove the front radiator side air guide plate LH.
      GTY925412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

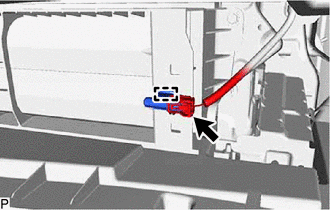

  3. REMOVE THERMISTOR ASSEMBLY
    1. Disengage the clamp.
      GTY925411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the thermistor assembly.
