Removal [04/2018 -]: Procedure

  1. REMOVE REAR DOOR ARMREST COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 -]

  2. REMOVE REAR DOOR TRIM ASSEMBLY COVER

    Refer to PROCEDURE - Step 5 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 5 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 -]

  3. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 6 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 6 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 -]

  4. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 -]

  5. REMOVE REAR SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

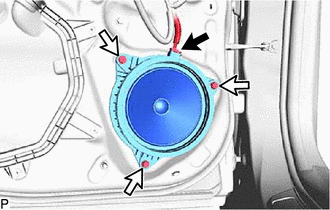

    1. Disconnect the connector.
      GTY925019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

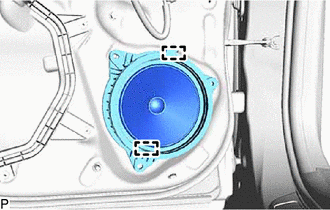

    2. Remove the 3 screws.
    3. Disengage the 2 guides to remove the rear speaker assembly.
      GTY925018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR NO. 2 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

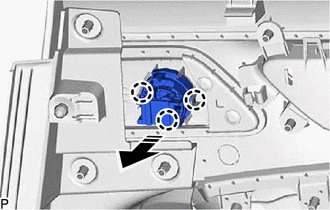

    1. for 8 Speakers:
      1. Disengage the 3 claws to remove the rear No. 2 speaker assembly as shown in the illustration.
        GTY860085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction

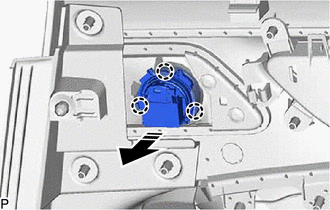

    2. for 14 Speakers:
      1. Disengage the 3 claws to remove the rear No. 2 speaker assembly as shown in the illustration.
        GTY869495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
