Removal [08/2019 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 4

  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for VF2A)

    Refer to PROCEDURE - Step 6

  7. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. REMOVE NO. 2 CONSOLE BOX RETAINER

    Refer to PROCEDURE - Step 8

  9. REMOVE REAR CONSOLE BOX ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY
    1. Disconnect the connector.
    2. Using a screwdriver, disengage the claw to remove the No. 1 power outlet socket assembly.

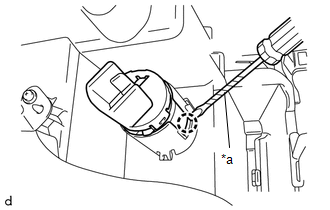

      GTY866225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  11. REMOVE NO. 1 POWER OUTLET SOCKET COVER
    1. Disengage the 2 claws to remove the No. 1 power outlet socket cover.
      GTY445585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR CONSOLE END PANEL

    Refer to PROCEDURE - Step 3

  13. REMOVE USB CHARGER SOCKET
    1. Disengage the 4 claws to remove the USB charger socket.
      GTY902384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  14. REMOVE ACCESSORY SOCKET WIRE
    1. Detach the 3 clamps to remove the accessory socket wire.
      GTY886432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
