Removal [08/2019 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 2

  3. REMOVE HEATER CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKETS
    1. Remove the 4 bolts.
      GTY865661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

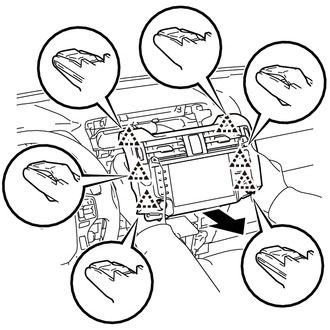

    2. Pull the radio and display receiver assembly with brackets as shown in the illustration to detach the 6 clips on the backside of the radio and display receiver assembly with brackets.
      GTY930450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

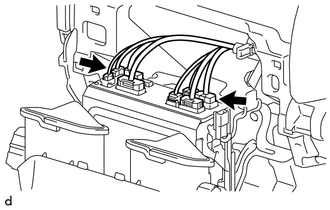

    3. Disconnect each connector to remove the radio and display receiver assembly with brackets.
      GTY445992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    GTY934505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 claws and guide to No. 3 instrument panel register assembly.
  6. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

    HINT:

    Use the same procedure as for the No. 3 instrument panel register assembly.

  7. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 5

  8. REMOVE HAZARD SWITCH WIRE

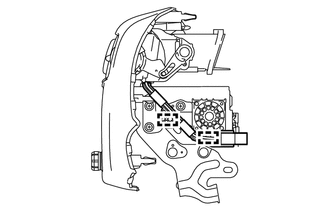

    1. Detach the 2 clamps.
      GTY867846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the hazard switch wire.
  9. REMOVE NO. 1 RADIO BRACKET
    1. Remove the 3 screws and No. 1 radio bracket.
      GTY867847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 RADIO BRACKET
    1. Remove the 3 screws and No. 2 radio bracket.
      GTY867851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE KNOB
    GTY876095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 knobs.
