Removal [08/2019 - ]: Procedure

REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 1
REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
Refer to PROCEDURE - Step 2
REMOVE HEATER CONTROL ASSEMBLY
Refer to PROCEDURE - Step 3
REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKETS
- For Radio and Display Type:
  Refer to PROCEDURE - Step 4
- For Navigation Receiver Type:
  Refer to PROCEDURE - Step 5

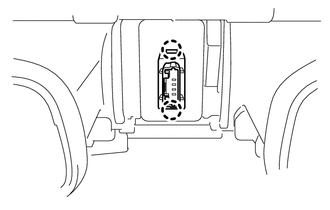

REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

Disconnect the connector.
