Installation [08/2015 - ]: Procedure

1. Temporarily install the set bolt.
2. Install the brake booster assembly (Refer to INSTALLATION [08/2015 - ] ).
3. Install the brake master cylinder sub-assembly (Refer to INSTALLATION [08/2015 - ] ).
4. Install the brake pedal support assembly with the 4 nuts.

   Torque: 14 N.m (145 kgf/cm, 10 ft.lbf)

5. Install the brake pedal support reinforcement set bolt.

   Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

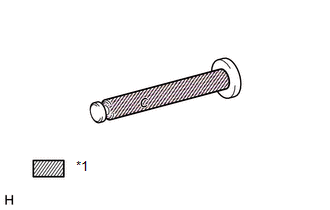

1. Apply a light coat of lithium soap base glycol grease to the inner surface of the hole on the brake pedal lever.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Lithium soap base glycol grease

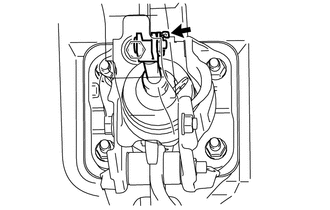

2. Set the master cylinder push rod clevis in place, insert the push rod pin from the left side of the vehicle and then install a new clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply a light coat of lithium soap base glycol grease to the inner surface of the hole on the brake pedal support assembly.
2. Install the brake pedal return spring to the brake pedal support assembly.

1. Connect the brake pedal load sensing switch connector.

1. Install the stop light switch assembly (Refer to PROCEDURE - Step 2 ).
2. Connect the stop light switch connector.

1. Install the lower No. 1 instrument panel airbag assembly (Refer to INSTALLATION [08/2015 - ] ).

See step  2[08/2015 - 08/2019], or see step  2[08/2019 - ]

1. Check and adjust brake pedal (Refer to ADJUSTMENT [08/2015 - ] ).
