Installation [08/2015 - ]: Procedure

  1. INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER
    1. Install the stop light switch mounting adjuster to the pedal support.
  2. INSTALL STOP LIGHT SWITCH ASSEMBLY
    1. Install the stop light switch to the adjuster so that the switch body slightly touches the brake pedal.

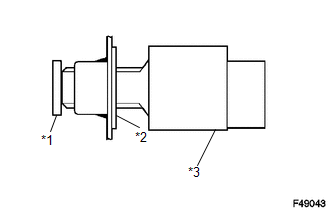

      GTY724453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Brake Pedal
      *2 Adjuster
      *3 Stop Light Switch
      NOTE:

      Do not depress the brake pedal.

    2. Rotate the stop light switch counterclockwise so that the clearance is between 1.5 and 2.5 mm (0.0590 to 0.0984 in.) as shown in the illustration.

      Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

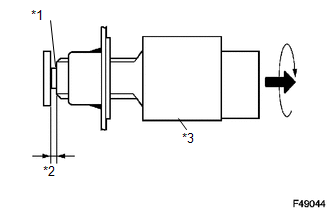

      GTY223329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Shaft
      *2 1.5 to 2.5 mm
      *3 Stop Light Switch
      NOTE:

      Do not depress the brake pedal.

    3. Check the stop light switch clearance.

      Stop light switch clearance

      1.5 to 2.5 mm (0.0590 to 0.0984 in.)

    4. Connect the connector to the stop light switch.
