Installation [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL VACUUM HOSE
    1. Install the vacuum hose to the intake manifold.
  2. INSTALL NO. 1 ENGINE COVER
    1. Install the No. 1 engine cover with the clip.
  3. INSTALL NO. 1 INTAKE MANIFOLD TO HEAD GASKET
    1. Install a new No. 1 intake manifold to head gasket to the intake manifold.
  4. INSTALL INTAKE MANIFOLD
    1. w/o Stud Bolt:

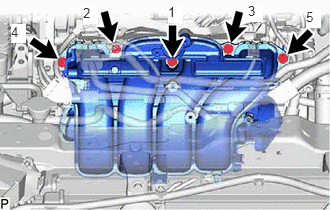

      Fig 1: Intake Manifold (W/O Stud Bolt) Tightening Sequence
      GTY915218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the intake manifold to the cylinder head sub-assembly with the 5 bolts.
      2. Tighten the 5 bolts in the order shown in the illustration.

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

    2. w/ Stud Bolt:

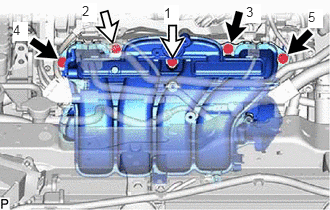

      Fig 2: Intake Manifold (W/ Stud Bolt) Tightening Sequence
      GTY865115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
      1. Temporarily install the intake manifold to the cylinder head sub-assembly with the 3 bolts and 2 nuts.
      2. Tighten the 3 bolts and 2 nuts in the order shown in the illustration.

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

  5. CONNECT NO. 2 FUEL VAPOR FEED HOSE
    1. Connect the No. 2 fuel vapor feed hose to the intake manifold.
  6. INSTALL NO. 2 WATER BY-PASS PIPE

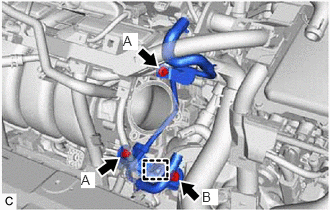

    1. Temporarily install the No. 2 water by-pass pipe to the cylinder block sub-assembly with the bolt (B).
      GTY742337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, temporarily install the No. 2 water by-pass pipe to the intake manifold with the 2 bolts (A).
    3. Tighten the bolt (B).

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    4. Using the 8 mm socket wrench, tighten the 2 bolts (A).

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    5. Attach the wire harness clamp to connect the HV air conditioning wire.
  7. CONNECT NO. 3 WATER BY-PASS PIPE
    1. Using an 8 mm socket wrench, connect the No. 3 water by-pass pipe to the intake manifold with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Connect the No. 5 water by-pass hose to the No. 3 water by-pass pipe and slide the clip to secure it.
  8. CONNECT ENGINE WIRE

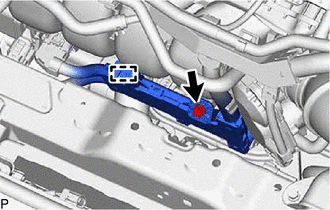

    1. Attach the wire harness clamp to connect the engine wire to the intake manifold.
      GTY915002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

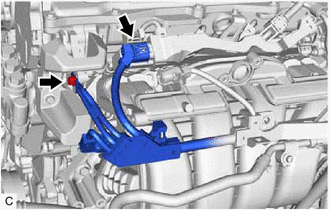

    3. Connect the engine wire to the cylinder head sub-assembly with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      GTY763895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the No. 5 engine wire connector.
  9. INSTALL PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 1

  10. INSTALL E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

    Refer to PROCEDURE - Step 1

  11. INSTALL EGR VALVE ASSEMBLY

    Refer to INSTALLATION [11/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - 12/2021] , or refer to INSTALLATION [12/2021 - ]

  12. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to INSTALLATION [11/2018 - 02/2019] , or refer to INSTALLATION [02/2019 - 08/2020] , or refer to INSTALLATION [08/2020 - ]
