Installation [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL PURGE VALVE (PURGE VSV)
    1. Install the purge valve (purge VSV) to the purge VSV bracket with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

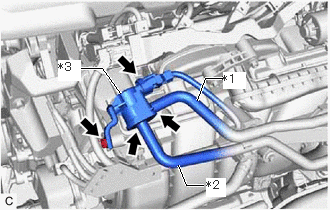

      GTY764037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Fuel Vapor Feed Hose
      *2 No. 2 Fuel Vapor Feed Hose
      *3 Purge Valve (Purge VSV)
    2. Connect the No. 2 fuel vapor feed hose to the purge valve (purge VSV).
    3. Connect the No. 1 fuel vapor feed hose to the purge valve (purge VSV).
    4. Connect the purge valve (purge VSV) connector.
