Removal [10/2022 - 10/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 3

  3. REMOVE BATTERY HOLE COVER

    Refer to PROCEDURE - Step 4

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [10/2022 - 10/2023]

  5. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20

  6. REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

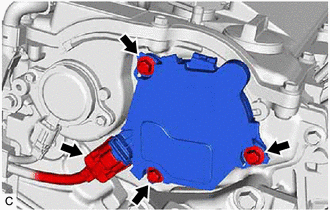

    1. Disconnect the cam timing control motor with EDU assembly connector.
      GTY771562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and cam timing control motor with EDU assembly from the No. 2 timing chain cover assembly.
      NOTE:

      If the cam timing control motor with EDU assembly has been struck or dropped, replace it.

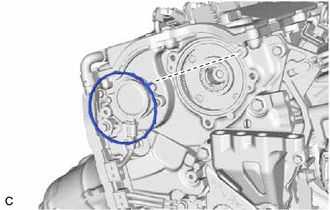

    3. Remove the cam timing control motor O-ring from the No. 2 timing chain cover assembly.
      GTY754319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
