Installation [08/2020 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL FUEL PRESSURE SENSOR

HINT:

Perform "Inspection After Repair" after replacing the fuel pressure sensor.

Temporarily install a new fuel pressure sensor to the fuel delivery pipe.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

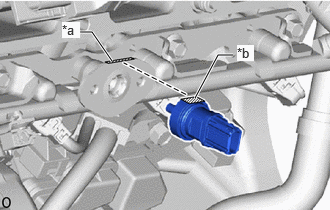

*a	Cutout (Fuel Delivery Pipe)
*b	Cutout (Fuel Pressure Sensor)

NOTE:

Make sure that the cutout of the fuel delivery pipe is aligned with the cutout of the fuel pressure sensor.
Do not allow dust or dirt to enter the sensor.
If a fuel pressure sensor is dropped or struck, replace it with a new one.

Temporarily install the No. 1 fuel pressure sensor holder to the fuel delivery pipe.

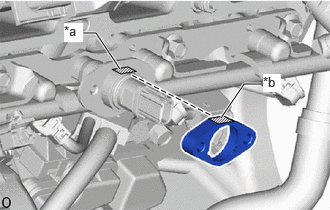

*a	Cutout (Fuel Pressure Sensor)
*b	Cutout (No. 1 Fuel Pressure Sensor Holder)

NOTE:

Make sure that the cutout of the fuel pressure sensor is aligned with the cutout of the No. 1 fuel pressure sensor holder.

INSTALL INTAKE MANIFOLD
Refer to INSTALLATION [11/2018 - ]
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [08/2020 - 12/2021] , or refer to INITIALIZATION [12/2021 - 10/2022] , or refer to INITIALIZATION [10/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
INSTALL BATTERY HOLE COVER
Refer to PROCEDURE - Step 3
INSTALL REAR NO. 2 FLOOR BOARD
Refer to PROCEDURE - Step 4
INSTALL DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 5
INSPECT FOR FUEL LEAK
Refer to PROCEDURE - Step 1
PERFORM INITIALIZATION
1. Perform "Inspection After Repair" after replacing the fuel pressure sensor.
  Refer to INITIALIZATION [08/2020 - 12/2021] , or refer to INITIALIZATION [12/2021 - 11/2024] , or refer to INITIALIZATION [11/2024 - ]
