Installation [11/2018 - ]: Procedure

1. Temporarily install the transmission floor shift assembly to the vehicle body with the 4 bolts.

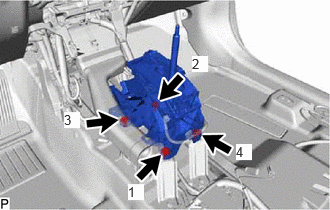

   Fig 1: Transmission Floor Shift Assembly Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the 4 bolts in the order shown in the illustration.

   Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

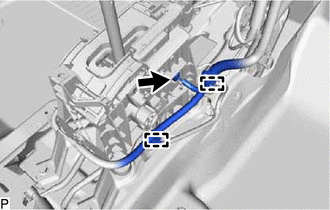

3. Connect the shift lock control ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Engage the 2 clamps to connect the wire harness to the transmission floor shift assembly.

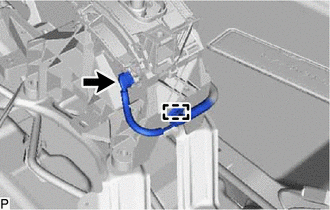

5. Connect the transmission control switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Engage the clamp to connect the wire harness to the transmission floor shift assembly.

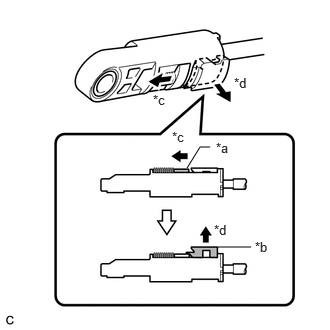

1. Slide the slider of the transmission control cable assembly in the direction indicated by the arrow in the illustration and pull the lock piece outward.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Slider
   *b	Lock Piece
   *c	Slide
   *d	Pull

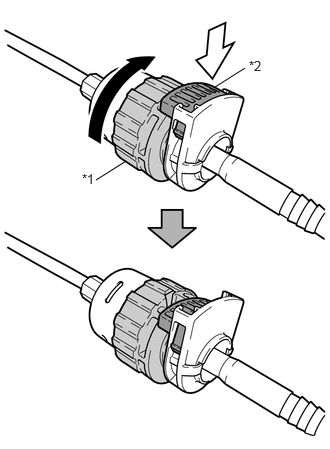

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Nut
   *2	Lock
   	Rotate approximately 180°
   	Push In

   Rotate the nut of the transmission control cable assembly approximately 180° in the direction shown in the illustration, and while holding the nut in that position, push in the lock.

   NOTE:

   Rotating the nut too much will damage the internal spring, and the transmission control cable assembly will not be reusable. Do not turn the nut too far.

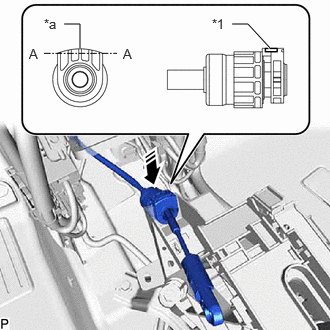

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Lock
   *a	Protrusion
   	Install in this Direction

   Install the transmission control cable assembly to the floor shift shift lever assembly.

   NOTE:

   • Install the transmission control cable assembly with the protrusion facing upwards.
   • After installation, make sure that the lock is projecting from A as shown in the illustration.
   • Make sure that the transmission control cable assembly is securely locked.
4. Connect the transmission control cable assembly to the transmission floor shift assembly.
   NOTE:

   • Check that the lock piece is pulled out.
   • Push the end of the transmission control cable assembly all the way to the base of the transmission floor shift assembly pin.
   • Connect the transmission control cable assembly so that the lock piece faces the driver side.

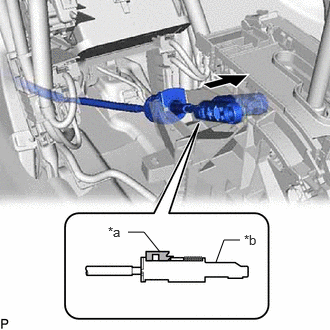

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Lock Piece
   *b	Adjuster Case

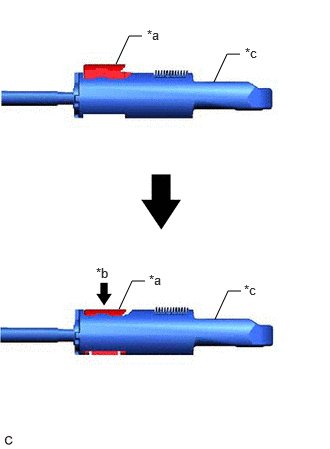

5. Push the lock piece into the adjuster case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Lock Piece
   *b	Push In
   *c	Adjuster Case

   NOTE:

   • Check that the shift lever is in N.
   • Securely push in the lock piece until the slider lock is engaged.
   • Make sure that lever shaft position is not moved in shift direction during adjuster locking operation.
     • Do not touch lever shaft and knob during locking operation.
     • Do not pull or push adjuster case in shift direction during locking operation.
6. After adjusting the shift lever position, check the position and operation of the shift lever. If there is a problem, adjust the shift lever position again.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

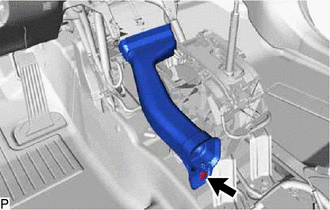

   Install the No. 1 console box duct with the clip.

Refer to INSTALLATION [11/2018 - 12/2021] , or refer to INSTALLATION [12/2021 - ]

See step  2 [11/2018 - 02/2019], or see step  2 [02/2019 - ]

Refer to ADJUSTMENT [11/2018 - ]
