Fuel Pump Control Circuit [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota RAV4, 2024 Toyota RAV4, 2023 Toyota RAV4, 2022 Toyota RAV4, and 2021 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUEL LEAK
    1. Check around and beneath the vehicle for fuel leaks, fumes, etc.

      OK

      No fuel leaks present.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE FUEL LEAK POINT

    Result:

    OK

    See step  2

  2. PERFORM ACTIVE TEST USING TECHSTREAM (ACTIVATE THE CIRCUIT RELAY)
    1. Check whether the fuel pump operating sound occurs when performing the Active Test on the Techstream.

      Powertrain > Engine > Active Test

      Tester Display
      Activate the Circuit Relay

      Standard

      Techstream Operation Standard
      ON Operating sounds can be heard from fuel pump (for low pressure side)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  7

    Result:

    OK

    See step  3

  3. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP DUTY RATIO)
    1. Install the fuel pressure gauge (for low pressure line of low pressure side).

      Refer to PROCEDURE - Step 1

    2. Compare the values in the Data List using the Techstream and the fuel pressure gauge when the Active Test was performed.

      Powertrain > Engine > Active Test

      Active Test Display
      Control the Fuel Pump Duty Ratio
      Data List Display
      Fuel Pressure (Low) / Fuel Pressure 2
      Fuel Pump Control Duty Ratio

      Standard

      Techstream Operation Standard
      Low Data List value and fuel pressure gauge are within +/-50 kPa of each other
      High

      HINT:

      Perform "Inspection After Repair" after replacing the fuel pressure sensor (for low pressure side).

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FUEL PRESSURE SENSOR (FOR LOW PRESSURE SIDE)

    Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    HINT:

    Perform "Inspection After Repair" after replacing the fuel pressure sensor (for low pressure side).

    Refer to INITIALIZATION [08/2020 - 12/2021] , or refer to INITIALIZATION [12/2021 - 11/2024] , or refer to INITIALIZATION [11/2024 - ]

    Result:

    OK

    See step  4

  4. READ VALUE USING TECHSTREAM (FUEL PRESSURE)
    1. Read the values displayed on the Techstream while the engine is cranking.

      Powertrain > Engine > Data List

      Tester Display
      Target Fuel Pressure (Low) / Target Fuel Pressure 2
      Fuel Pressure (Low) / Fuel Pressure 2
      Low Fuel Pressure Sensor

      Result

      Result Proceed to
      Low Fuel Pressure Sensor value is within +/- 65 kPa of the Target Fuel Pressure (Low) / Target Fuel Pressure 2 A
      Low Fuel Pressure Sensor value is higher than 65 kPa higher than the target fuel pressure (low) B
      Low Fuel Pressure Sensor value is higher than 65 kPa lower than the target fuel pressure (low) C

      HINT:

      Perform "Inspection After Repair" after replacing the fuel pump (for low pressure side).

    Result:

    B

    REPLACE FUEL PUMP (FOR LOW PRESSURE SIDE)

    Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    HINT:

    Result:

    C

    See step  6

    Result:

    A

    See step  5

  5. CHECK FUEL PRESSURE
    1. Install the fuel pressure gauge (for low pressure line of low pressure side).

      Refer to PROCEDURE - Step 1

    2. Start the engine.
    3. Measure the fuel pressure at idle.

      Standard Fuel Pressure

      196 to 833 kPa (2.0 to 8.5 kgf/cm2 , 28 to 121 psi)

      HINT:

      Refer to Standard Idle Speed.

      Refer to PROCEDURE - Step 5

    4. Stop the engine.
    5. Check that the fuel pressure remains as specified for 5 minutes.

      Standard Fuel Pressure

      98 kPa (1.0 kgf/cm 2 , 14.2 psi) or higher

      HINT:

      Perform "Inspection After Repair" after replacing the fuel pump (for low pressure side).

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    Refer to PROBLEM SYMPTOMS TABLE [08/2020 - ]

    Result:

    NG

    REPLACE FUEL PUMP (FOR LOW PRESSURE SIDE)

    Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    HINT:

    Perform "Inspection After Repair" after replacing the fuel pump (for low pressure side).

    Refer to INITIALIZATION [08/2020 - 12/2021] , or refer to INITIALIZATION [12/2021 - 11/2024] , or refer to INITIALIZATION [11/2024 - ]

  6. CHECK SHORTAGE OF FUEL
    1. Check the amount of fuel remaining.

      HINT:

      • No fuel remains in the fuel tank: Malfunction of the fuel sender gauge assembly is suspected.
      • Only the fuel pump side fuel chamber has no fuel remaining: Malfunction of the jet pump is suspected.
      • Fuel remains in the fuel tank: Malfunction of the fuel pump (for low pressure side) is suspected.
      • Perform "Inspection After Repair" after replacing the fuel pump (for low pressure side).

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    REPLACE FUEL PUMP (FOR LOW PRESSURE SIDE)

    Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    HINT:

    Perform "Inspection After Repair" after replacing the fuel pump (for low pressure side).

    Refer to INITIALIZATION [08/2020 - 12/2021] , or refer to INITIALIZATION [12/2021 - 11/2024] , or refer to INITIALIZATION [11/2024 - ]

  7. PERFORM ACTIVE TEST USING TECHSTREAM (FUEL PUMP SINGLE PHASE ENERGIZATION)
    1. Disconnect the fuel pump (for low pressure side) connector.
      GTY994196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Fuel Pump (for low pressure side))
    2. Operate the fuel pump control ECU using the Active Test function and measure the voltage according to the value(s) in the table below.

      Powertrain > Engine > Active Test

      Tester Display
      Fuel Pump Single Phase Energization

      Standard Voltage

      Tester Connection Techstream Operation Specified Condition
      N46-3 (BLPU) - Body ground U Phase 4.4 to 8.4 V*
      N46-4 (BLPV) - Body ground V Phase 4.4 to 8.4 V*
      N46-2 (BLPW) - Body ground W Phase 4.4 to 8.4 V*

      HINT:

      • *: This Active Test restricts the fuel pump control ECU output duty cycle to 50%. Therefore, the output voltage of the fuel pump control ECU will be approximately 50% of the power source voltage.
      • Before performing this inspection, check that the auxiliary battery voltage is between 11 and 14 V (not depleted).

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FUEL PUMP (FOR LOW PRESSURE SIDE)

    Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    HINT:

    Perform "Inspection After Repair" after replacing the fuel pump (for low pressure side).

    Refer to INITIALIZATION [08/2020 - 12/2021] , or refer to INITIALIZATION [12/2021 - 11/2024] , or refer to INITIALIZATION [11/2024 - ]

    Result:

    NG

    See step  8

  8. CHECK HARNESS AND CONNECTOR (FUEL PUMP CONTROL ECU - FUEL PUMP)
    1. Disconnect the fuel pump control ECU connector.
    2. Disconnect the fuel pump connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N14-2 (FPU) - N46-3 (BLPU) Always Below 1 Ω
      N14-3 (FPV) - N46-4 (BLPV) Always Below 1 Ω
      N14-4 (FPW) - N46-2 (BLPW) Always Below 1 Ω
      N14-2 (FPU) or N46-3 (BLPU) - Body ground and other terminals Always 10 kΩ or higher
      N14-3 (FPV) or N46-4 (BLPV) - Body ground and other terminals Always 10 kΩ or higher
      N14-4 (FPW) or N46-2 (BLPW) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (POWER SOURCE OF FUEL PUMP CONTROL ECU)
    1. Disconnect the fuel pump control ECU connector.
      GTY994112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Fuel Pump Control ECU)
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      N15-1 (+B) - N15-3 (GND) Ignition switch ON 11 to 14 V

      HINT:

      Make a note of the measured voltage as it may be used in a following Active Test.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  12

    Result:

    OK

    See step  10

  10. INSPECT ECM (FPC TERMINAL)
    1. Disconnect the fuel pump control ECU connector.
      GTY994114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Fuel Pump Control ECU)

      Powertrain > Engine > Active Test

      Tester Display
      Fuel Pump Single Phase Energization
    2. Operate the fuel pump control ECU using the Active Test function and measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Techstream Operation Specified Condition
      N15-2 (FPC) - Body ground Before Active Test → During Active Test Before Active Test: Resistance is stable → During Active Test: Resistance fluctuates*

      HINT:

      *: Using the Active Test, duty control of the transistors in the ECM will be performed. Due to the duty control, resistance of the FPC terminal will be unstable during the Active Test. If the resistance is stable before the Active Test and fluctuates while performing the Active Test, it can be determined that the transistor is operating. If the transistor does not operate during the Active Test, the ECM may be malfunctioning.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FUEL PUMP CONTROL ECU

    Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result:

    NG

    See step  11

  11. CHECK HARNESS AND CONNECTOR (FUEL PUMP CONTROL ECU - ECM)
    1. Disconnect the fuel pump control ECU connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N15-2 (FPC) - A24-6 (FPC) Always Below 1 Ω
      N15-2 (FPC) or A24-6 (FPC) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM

    Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  12. CHECK HARNESS AND CONNECTOR (FUEL PUMP CONTROL ECU - BODY GROUND)
    1. Disconnect the fuel pump control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N15-3 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  13

  13. CHECK HARNESS AND CONNECTOR (POWER SOURCE VOLTAGE OF EFI-MAIN NO. 2 RELAY)

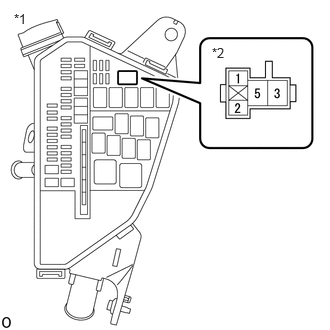

    GTY853759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 No. 1 Engine Room Relay Block and Junction Block Assembly.
    *2 EFI-MAIN NO. 2 Relay
    1. Remove the EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and junction block assembly.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      3 (EFI-MAIN NO. 2 relay) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (AUXILIARY BATTERY - EFI-MAIN NO. 2 RELAY)

    Result:

    OK

    See step  14

  14. INSPECT EFI-MAIN NO. 2 RELAY

    Refer to PROCEDURE - Step 6

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE EFI-MAIN NO. 2 RELAY

    Result:

    OK

    See step  15

  15. CHECK HARNESS AND CONNECTOR (EFI-MAIN NO. 1 RELAY - EFI-MAIN NO. 2 RELAY)
    1. Remove the EFI-MAIN NO. 1 relay and EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and junction block assembly.
    2. Remove the EFI NO. 1 fuse and D INJ relay, EFI-MAIN NO. 3 relay from the No. 1 engine room relay block and junction block assembly.

      HINT:

      Remove the EFI NO. 1 fuse and D INJ relay and EFI-MAIN NO. 3 relay connected between the checked terminals as the coil inside the relay influences the measurement value.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      5 (EFI-MAIN NO. 1 relay) - 2 (EFI-MAIN NO. 2 relay) Always Below 1 Ω
      5 (EFI-MAIN NO. 1 relay) or 2 (EFI-MAIN NO. 2 relay) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  16

  16. CHECK HARNESS AND CONNECTOR (EFI-MAIN NO. 2 RELAY - BODY GROUND)
    1. Remove the EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and Junction block assembly.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (EFI-MAIN NO. 2 relay) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  17

  17. CHECK HARNESS AND CONNECTOR (EFI-MAIN NO. 2 RELAY - FUEL PUMP CONTROL ECU)
    1. Remove the EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and junction block assembly.
    2. Disconnect the N15 fuel pump control ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      5 (EFI-MAIN NO. 2 relay) - N15-1 (+B) Always Below 1 Ω
      5 (EFI-MAIN NO. 2 relay) or N15-1 (+B) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    GO TO ECM POWER SOURCE CIRCUIT

    Refer to ECM Power Source Circuit [08/2020 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

scientia non olet · About LEMON Manuals
