Removal [11/2018 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 20 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 20 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 20 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 20 [10/2023 - ]

  2. REMOVE INLET AIR CLEANER ASSEMBLY

    See step  3 [11/2018 - 08/2020], or see step  3 [08/2020 - ]

  3. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    See step  4 [11/2018 - 08/2020], or see step  4 [08/2020 - ]

  4. REMOVE VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

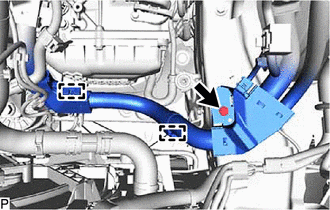

    1. Remove the bolt and detach the 2 wire harness clamps to disconnect the engine wire.
      GTY920637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

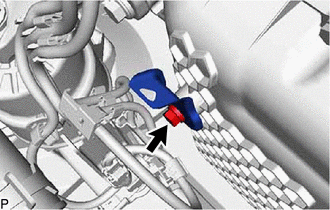

    2. Remove the bolt and wire harness clamp bracket from the transmission case side cover.
      GTY920635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

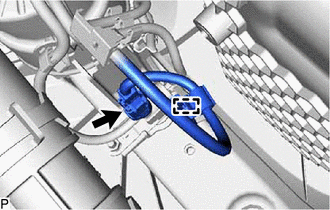

    3. Detach the wire harness clamp and disconnect the vacuum switching valve (for active control engine mount system) connector.
      GTY920634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

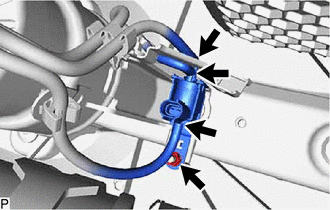

    4. Disconnect the 3 vacuum hoses from the vacuum switching valve (for active control engine mount system).
      GTY944372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the nut and vacuum switching valve (for active control engine mount system) from the front engine mounting insulator.
