Removal [11/2018 - ]: Procedure

  1. REMOVE VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

    Refer to REMOVAL [11/2018 - ]

  2. REMOVE FRONT FENDER SPLASH SHIELD RH

    Refer to PROCEDURE - Step 9 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 9 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 9 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 9 [10/2023 - ]

  3. REMOVE FRONT FENDER SPLASH SHIELD LH

    Refer to PROCEDURE - Step 8 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 8 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 8 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 8 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 8 [10/2023 - ]

  4. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 10 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 10 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 10 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 10 [10/2023 - ]

  5. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 11 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 11 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 11 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 11 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 11 [10/2023 - ]

  6. REMOVE FRONT ENGINE MOUNTING INSULATOR
    1. Detach the 4 clamps to disconnect the radiator hose, vacuum hoses and No. 2 engine wire from the No. 1 radiator bracket.
      GTY920642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

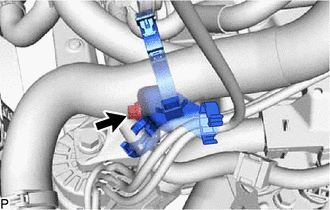

    2. Remove the bolt and No. 1 radiator bracket from the front engine mounting bracket.
      GTY920654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 2 clamps to disconnect the vacuum hoses from the front engine mounting insulator.
      GTY920652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

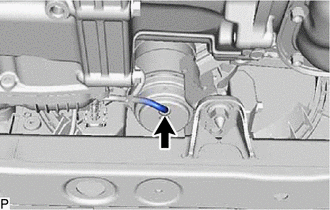

    4. Disconnect the vacuum hose from the front engine mounting insulator.
      GTY920650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

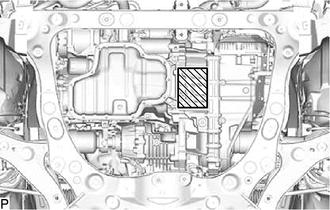

    5. Support the engine assembly with transaxle using a jack and wooden block.
      GTY864935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Wooden Block Placement Location

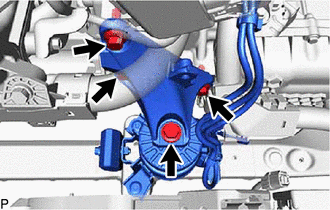

    6. Remove the 4 bolts and front engine mounting bracket.
      GTY920647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 3 nuts and front engine mounting insulator from the front frame assembly.
      GTY920646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

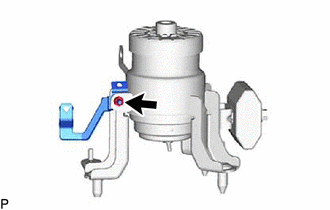

    8. Remove the nut and stay from the front engine mounting insulator.
      GTY944375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
