Installation [06/2020 - 12/2021]: Procedure

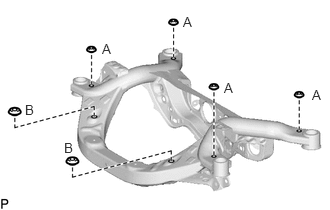

  1. INSTALL HOLE PLUG
    1. Install the 6 hole plugs to the rear suspension member sub-assembly.

      HINT:

      There are 2 different shapes of hole plug.

      GTY857925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

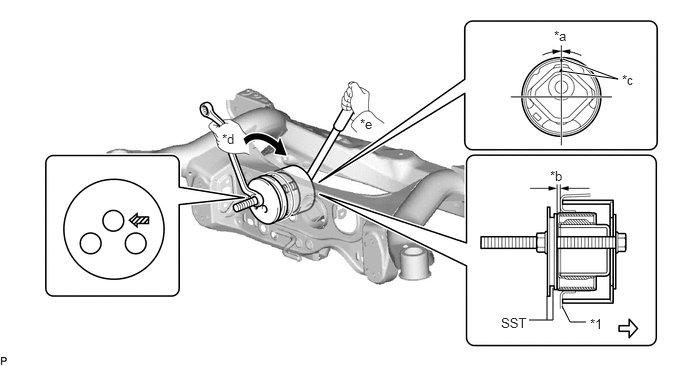

  2. INSTALL DIFFERENTIAL MOUNT CUSHION
    1. Using SST, install a new differential mount cushion.
      • SST: 09316-12010
      • SST: 09570-24011
      GTY865864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Suspension Member Sub-assembly - -
      *a -3° to 3° *b 3.1 to 4.1 mm (0.1220 to 0.1614 in.)
      *c Protrusion *d Turn
      *e Hold - -
      Turning Direction Front of Vehicle
      SST Bolt Position - -
      NOTE:
      • Make sure that the differential mount cushion is aligned within 3° from the center.
      • Install the differential mount cushion so that the protrusion is positioned as shown in the illustration.
      • Be sure to use the correct combination of SST.
      • Before using SST, apply grease to SST bolt.
      • Temporarily install the differential mount cushion to the rear suspension member sub-assembly in order to prevent it from tilting, and then install SST.
      • Make sure that SST contacts the entire circumference of the differential mount cushion.
      • Do not tilt the bolts of SST.
  3. INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for LH Side)

    See step  2 [02/2019 - 08/2020], or see step  2 [08/2020 - 12/2021]

  4. INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for RH Side)

    See step  3 [02/2019 - 08/2020], or see step  3 [08/2020 - 12/2021]

  5. INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH

    See step  4 [02/2019 - 08/2020], or see step  4 [08/2020 - 12/2021]

  6. INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH

    See step  5 [02/2019 - 08/2020], or see step  5 [08/2020 - 12/2021]

  7. INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  8. INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  9. INSTALL REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY

    Refer to PROCEDURE - Step 4

  10. CONNECT WIRE HARNESS

    Refer to PROCEDURE - Step 6

  11. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY
    1. for TMC Made:
      1. Install the 4 rear suspension member cushions to the rear suspension member sub-assembly.

        HINT:

        When reusing the rear suspension member cushion, make sure to check its identification mark and install it to the correct position.

    2. for TMMC Made:
      1. Install the 2 rear suspension member cushions and 2 upper differential support member stoppers to the rear suspension member sub-assembly.

        HINT:

        When reusing the rear suspension member cushion and upper differential support member stopper, make sure to check its identification mark and install it to the correct position.

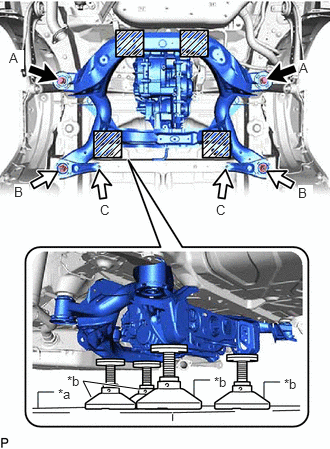

    3. Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
      WARNING:
      • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
      • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
      GTY942253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.
      • Keep supporting the rear suspension member sub-assembly until the installation has been completed.
      GTY854390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Engine Lifter
      *b Attachment
      Attachment and Wooden Block Placement Location
    4. Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle.
    5. Install the rear suspension member sub-assembly with the 2 rear suspension member lower stoppers, rear suspension member lower brace LH and rear suspension member lower brace RH, 2 bolts and 4 nuts.

      Bolt A

      Torque: 158 N.m (1611 kgf/cm, 117 ft.lbf)

      Nut B

      Torque: 158 N.m (1611 kgf/cm, 117 ft.lbf)

      Nut C

      Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

    6. w/ Height Control Sensor:
      1. Engage the 5 clamps to install the wire harness.
    7. w/o Height Control Sensor:
      1. Engage the 4 clamps to install the wire harness.
    8. Pass the connector through the hole to the inside of the vehicle and install the grommet of the wire harness.
    9. w/ Height Control Sensor:
      1. Connect the 2 connectors.
    10. w/o Height Control Sensor:
      1. Connect the connector.
  12. INSTALL FLOOR UNDER WIRE
    WARNING:

    Be sure to wear insulated gloves.

    1. Install the HV floor under wire to the rear traction motor with transaxle assembly with the 2 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      NOTE:
      • Make sure that the connector is fully engaged.
      • Do not damage the terminals, interlock connector or rear traction motor with transaxle assembly during installation.
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not allow any foreign matter or water to enter the rear traction motor with transaxle assembly.
      • Although the connector may feel loose, this is not due to a malfunction.
      GTY909024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal
    2. Engage the clamp.
      GTY842515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
    1. Temporarily install the rear No. 1 suspension arm assembly to the rear suspension member sub-assembly with the bolt and nut.
      NOTE:
      • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
      • Insert the bolt with the threaded end facing the rear of the vehicle.
  14. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  15. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  16. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  17. INSTALL REAR DRIVE SHAFT ASSEMBLY LH

    Refer to INSTALLATION [10/2019 - ]

  18. INSTALL REAR DRIVE SHAFT ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  19. INSTALL REAR STABILIZER BAR

    Refer to INSTALLATION [11/2018 - ]

  20. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 25 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 23 [08/2020 - 10/2023]

  21. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Refer to PROCEDURE - Step 27 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 25 [08/2020 - 10/2023]

  22. INSTALL TETHER ANCHOR BRACKET SET

    Refer to PROCEDURE - Step 28 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 26 [08/2020 - 10/2023]

  23. INSTALL REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 29 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 27 [08/2020 - 10/2023]

  24. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1

  25. INSTALL REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 60 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 58 [08/2020 - 10/2023]

  26. INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Refer to PROCEDURE - Step 48 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 46 [08/2020 - 10/2023]

  27. INSTALL REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 59 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 57 [08/2020 - 10/2023]

  28. INSTALL REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 65 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 63 [08/2020 - 10/2023]

  29. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 67 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 65 [08/2020 - 10/2023]

  30. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 68 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 66 [08/2020 - 10/2023]

  31. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  32. INSTALL REAR SEAT ASSEMBLY

    Refer to INSTALLATION [11/2018 - ]

  33. STABILIZE SUSPENSION

    Refer to PROCEDURE - Step 4

  34. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  35. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  36. INSTALL NO. 1 FLOOR UNDER COVER (w/ NO. 1 FLOOR UNDER COVER)
    1. Install the No. 1 floor under cover to the rear suspension member sub-assembly with the 3 bolts and 3 clips.

      Bolt

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  37. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [11/2018 - ]

  38. INSTALL REAR WHEEL

    Refer to INSTALLATION [11/2018 - ]

  39. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Refer to ADJUSTMENT [11/2018 - 08/2020] , or refer to ADJUSTMENT [08/2020 - 12/2021]

  40. PERFORM INITIALIZATION

    Refer to INITIALIZATION [06/2020 - 08/2020] , or refer to INITIALIZATION [08/2020 - 12/2021]
