Installation [11/2018 - ]: Procedure

INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH
1. Temporarily install the child restraint seat anchor bracket sub-assembly LH with the 2 bolts.

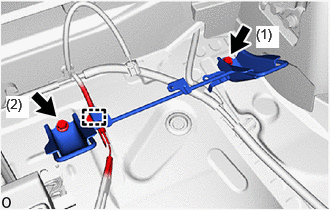

  Fig 1: Child Restraint Seat Anchor Bracket Sub-Assembly LH Bolts Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the 2 bolts in the order shown in the illustration.
  Torque: 19.5 N.m (199 kgf/cm, 14 ft.lbf)
3. w/ Seat Belt Warning System:
  1. Attach the clamp.
INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH
HINT:

Use the same procedure described for the LH side.
INSTALL REAR SEATBACK ASSEMBLY RH
Refer to PROCEDURE - Step 10
INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)
See step 14
INSTALL REAR SEATBACK ASSEMBLY LH
Refer to PROCEDURE - Step 12
INSTALL REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 13
INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 14
INSPECT SEAT HEATER SYSTEM (w/ Seat Heater System)
Refer to OPERATION CHECK [11/2018 - ]
