Removal [06/2015 - 11/2018]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work.

Refer to PRECAUTION [06/2015 - ]
DISABLE BRAKE CONTROL
Refer to PROCEDURE - Step 3
REMOVE REAR WHEEL
Refer to PROCEDURE - Step 1
DISCONNECT SKID CONTROL SENSOR WIRE
Refer to PROCEDURE - Step 2

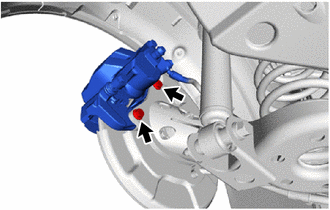

SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

Remove the 2 bolts and separate the rear disc brake caliper assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Use wire or an equivalent tool to keep the rear disc brake caliper assembly from hanging by the rear flexible hose.

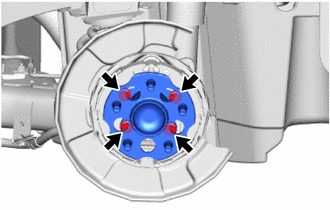

REMOVE REAR AXLE HUB AND BEARING ASSEMBLY

Remove the 4 bolts and rear axle hub and bearing assembly from the rear axle beam assembly.
