Removal [06/2015 - 11/2018]: Procedure

REMOVE REAR WHEEL
Refer to PROCEDURE - Step 1

SEPARATE SKID CONTROL SENSOR WIRE

Using a screwdriver with its tip wrapped in protective tape, disconnect the skid control sensor wire connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

NOTE:

Be careful not to damage the rear axle hub and bearing assembly and connector cover.

SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH
Refer to PROCEDURE - Step 5
REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG
Refer to PROCEDURE - Step 13
REMOVE REAR DISC
Refer to PROCEDURE - Step 14

REMOVE REAR AXLE HUB AND BEARING ASSEMBLY

Remove the 4 bolts and rear axle hub and bearing assembly from the rear axle beam assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The rear speed sensor is a component of the rear axle hub and bearing assembly. If the rear speed sensor is malfunctioning, replace the rear axle hub and bearing assembly.

SEPARATE REAR WHEEL HOUSE LINER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

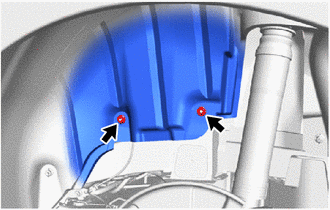

1. Remove the 2 clips and separate the rear wheel house liner.
REMOVE REAR SEAT ASSEMBLY
Refer to REMOVAL [06/2015 - ]
REMOVE NO. 1 EV BATTERY INTAKE DUCT
Refer to REMOVAL [06/2015 - 11/2018]

REMOVE SKID CONTROL SENSOR WIRE

Disconnect the connector.

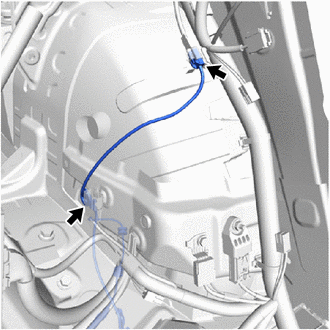

Disconnect the grommet of the rear skid control sensor wire from the hole of the wheel house.

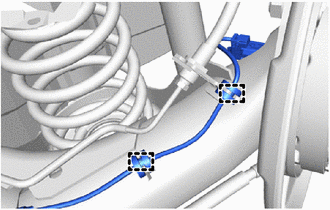

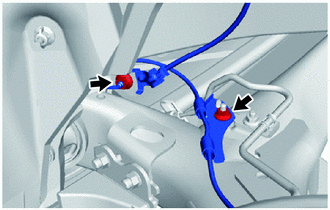

Remove the 2 nuts to separate the 2 sensor clamps from the side member and rear axle beam assembly.

Remove the 2 grommets of the skid control sensor wire from the rear axle beam assembly.
