Removal [06/2015 - ]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG RH

    HINT:

    Use the same procedure for the LH side.

    Refer to PROCEDURE - Step 4 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 4 [11/2018 - ]

  2. REMOVE FRONT DOOR ARMREST COVER RH

    HINT:

    Use the same procedure for the LH side.

    Refer to PROCEDURE - Step 5 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 5 [11/2018 - ]

  3. REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION

    HINT:

    Use the same procedure for the LH side.

    Refer to PROCEDURE - Step 6 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 6 [11/2018 - ]

  4. REMOVE COURTESY LIGHT ASSEMBLY

    HINT:

    Use the same procedure for the LH side.

    Refer to PROCEDURE - Step 1

  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH

    HINT:

    Use the same procedure for the LH side.

    Refer to PROCEDURE - Step 8 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 8 [11/2018 - ]

  6. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY
    1. Disconnect the connector.

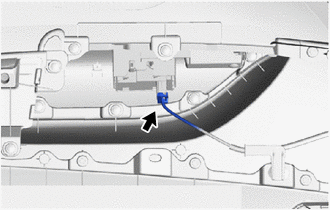

      GTY548131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver with its tip wrapped in protective tape, disengage the claw.
      GTY606037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    3. Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the power window regulator switch assembly as shown in the illustration.

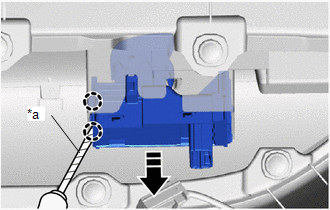

      GTY604420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
