Removal [06/2015 - ]: Procedure

  1. REMOVE COURTESY LIGHT ASSEMBLY

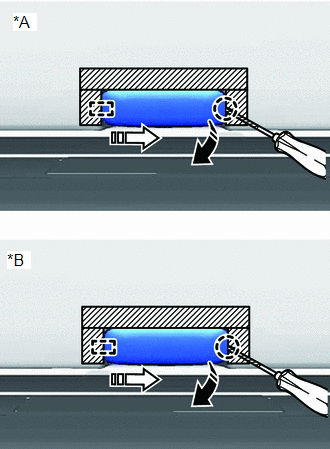

    1. Apply protective tape as shown in the illustration.
      GTY545219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Passenger Side
      *B Driver Side
      Protective Tape
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Using a screwdriver with its tip wrapped in protective tape, disengage the claw and guide as shown in the illustration.
    3. Disconnect the connector to remove the courtesy light assembly.
  2. REMOVE COURTESY LIGHT BULB
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw.
      GTY542365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Courtesy Light Housing
      *2 Courtesy Light Cover
      *a Protective Tape
      Remove in this Direction
    2. Remove the courtesy light housing with courtesy light cover as shown in the illustration.
    3. Remove the courtesy light cover as shown in the illustration.
      GTY605899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Remove the courtesy light bulb as shown in the illustration.
      GTY579169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
