Removal [06/2015 - ]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 4 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 4 [11/2018 - ]

  2. REMOVE FRONT DOOR ARMREST COVER

    Refer to PROCEDURE - Step 5 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 5 [11/2018 - ]

  3. REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION

    Refer to PROCEDURE - Step 6 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 6 [11/2018 - ]

  4. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 8 [11/2018 - ]

  6. REMOVE OUTER MIRROR INSTALL HOLE COVER
    1. Remove the screw.
      GTY542837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disengage the claws to remove the outer mirror install hole cover as shown in the illustration.
  7. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

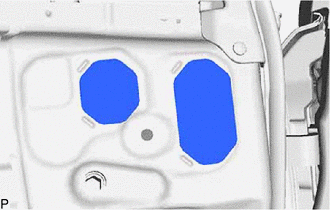

    1. Remove the 2 outer mirror protectors.
      GTY548532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
      GTY585314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
      Push
    3. Disengage the clamp.
    4. Remove the 3 nuts.
    5. Using a screwdriver, disengage the claw.
    6. Disengage the guides to remove the outer rear view mirror assembly.
