Removal [06/2015 - ]: Procedure

REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
Refer to PROCEDURE - Step 4 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 4 [11/2018 - ]
REMOVE FRONT DOOR ARMREST COVER LH
Refer to PROCEDURE - Step 5 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 5 [11/2018 - ]
REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION
Refer to PROCEDURE - Step 6 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 6 [11/2018 - ]
REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 8 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 8 [11/2018 - ]

REMOVE OUTER MIRROR SWITCH ASSEMBLY

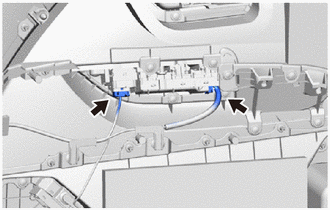

Disconnect the 2 connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

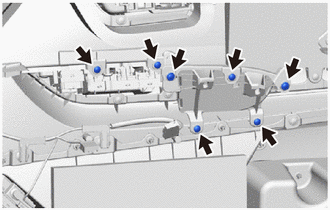

Remove the 7 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

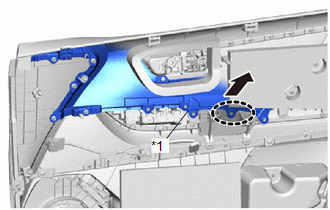

As shown in the illustration, slightly raise up the door trim upper panel assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Door Trim Upper Panel Assembly LH
	Raise Up
	Place Hands Here

HINT:

Raise up the door trim upper panel assembly LH far enough that the front door pull handle LH can be removed.

Remove the front door pull handle LH as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

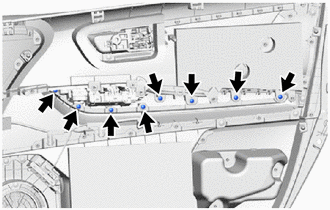

Remove the 8 screws.

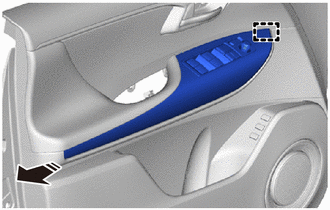

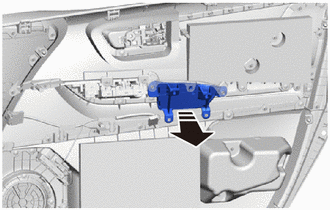

Disengage the guide to remove the front door armrest base panel LH as shown in the illustration.

Remove in this Direction

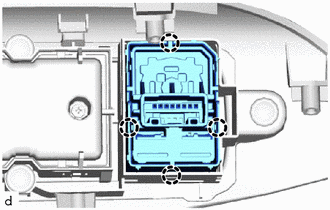

Using a screwdriver, disengage the claws to remove the outer mirror switch assembly.
