Removal [11/2018 - ]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Refer to INITIALIZATION [11/2018 - ]
REMOVE LUGGAGE TRIM SERVICE HOLE COVER
Refer to PROCEDURE - Step 2
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 3

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [11/2018 - ]
REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 9
REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
HINT:

Use the same procedure as for the No. 1 instrument panel speaker panel sub-assembly side.
REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 2
REMOVE NO. 1 INSTRUMENT PANEL CUSHION
Refer to PROCEDURE - Step 12
DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 13
DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
HINT:

Use the same procedure as for the LH side.
REMOVE FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 15
REMOVE FRONT PILLAR GARNISH RH
HINT:

Use the same procedure as for the LH side.
REMOVE LOWER INSTRUMENT PANEL ASSEMBLY
Refer to PROCEDURE - Step 42

REMOVE COMBINATION METER ASSEMBLY

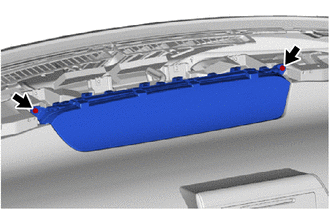

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

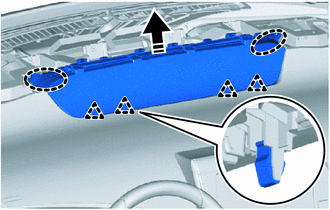

Disengage the clips to pull the combination meter assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hands Here
	Remove in this Direction

NOTE:

When the combination meter assembly is pulled upward, be careful that it does not contact the windshield glass and damage the glass.

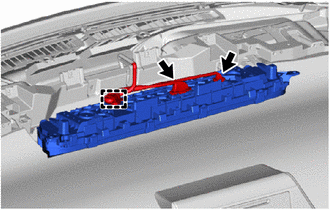

Disengage the clamp.
