Removal [11/2023 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

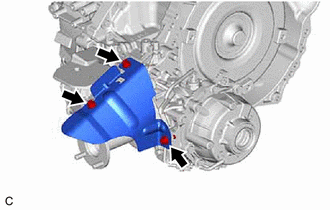

  2. REMOVE PROPELLER SHAFT HEAT INSULATOR
    1. Remove the 3 bolts and propeller shaft heat insulator.
      GTY1114060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

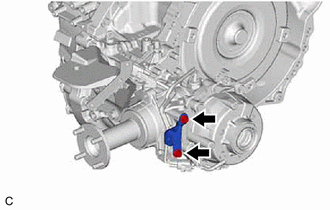

  3. REMOVE PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY
    1. Remove the 2 bolts and propeller shaft heat insulator bracket sub-assembly.
      GTY1118663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

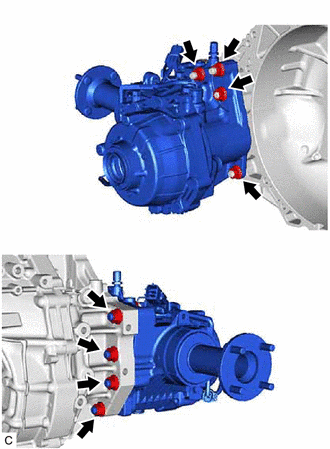

  5. REMOVE TRANSFER ASSEMBLY
    1. Remove the 8 nuts and transfer assembly from the automatic transaxle assembly.
      GTY1110715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
