DTC P0505-00: Idle Control System [10/2022 - 11/2023]: Procedure

1. Read the DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTC P0505-00 is output	A
   DTC P0505-00 and other DTCs are output	B

   HINT:

   If any DTCs other than P0505-00 are output, troubleshoot those DTCs first.

Result:

B

GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2022 - 11/2023]

Result:

A

See step  2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

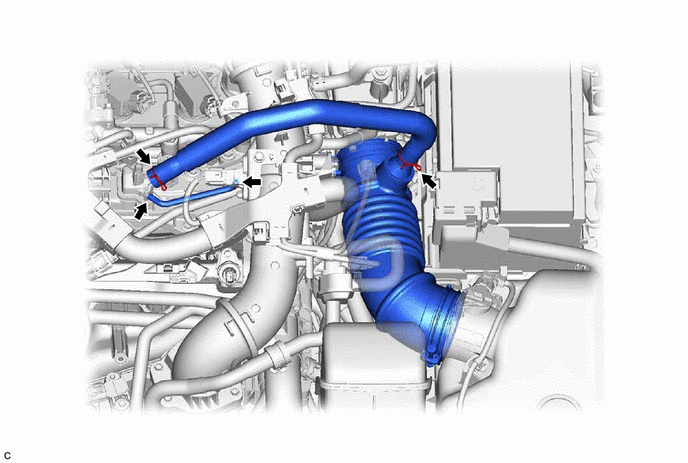

1. Check the PCV hose connections.
2. Check the PCV valve.

   Refer to INSPECTION [10/2022 - ]

   OK

   PCV hose and PCV valve are connected correctly and are not damaged.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE PCV VALVE OR HOSE

Result:

OK

See step  3

1. Check the intake system for vacuum leaks.

   Refer to PROCEDURE - Step 1

   OK

   No leaks from the intake system.

   HINT:

   Perform "Inspection After Repair" after repairing or replacing the intake system.

   Refer to INITIALIZATION [10/2022 - ]

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE INTAKE SYSTEM

Result:

OK

See step  4

1. Check the throttle body with motor assembly condition.

   OK

   Throttle valve is not contaminated with foreign matter and moves smoothly.

   HINT:

   Perform "Inspection After Repair" after replacing the throttle body with motor assembly.

   Refer to INITIALIZATION [10/2022 - ]

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY

Refer to REMOVAL [10/2022 - ]

Result:

OK

See step  5

1. Clear the DTCs.

   Powertrain > Engine > Clear DTCs

2. Turn the ignition switch off and wait for at least 30 seconds.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  6

1. Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
2. Read the pending DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTCs are not output	A
   DTC P0505-00 is output	B

Result:

A

END

Result:

B

REPLACE ECM

Refer to REMOVAL [10/2022 - 11/2023]
