Installation [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TURBINE OUTLET ELBOW GASKET

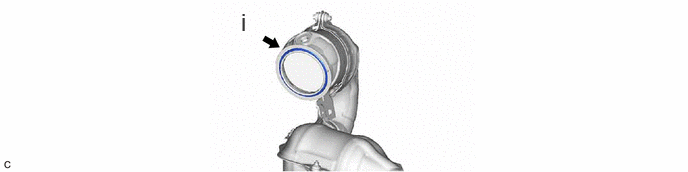

    1. GTY1107039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new turbine outlet elbow gasket to the converter with catalyst assembly.
        NOTE:
        • Turbine outlet elbow gaskets are located in the grooves all around.
        • After assembly, remove any peeling residue on the flange surface.
  2. INSTALL EXHAUST PIPE CLAMP

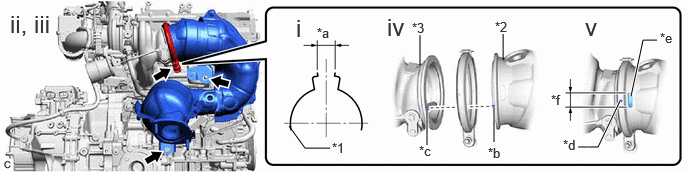

    1. GTY1249908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Exhaust Pipe Clamp *2 Converter With Catalyst Assembly
      *3 Turbo Charger Sub-assembly - -
      *a 140 mm (5.5118 in.) or less *b Knock Pin
      *c Hole *d Alignment Protrusion on Exhaust Pipe Clamp Side
      *e Alignment Protrusion on Converter With Catalyst Assembly Side *f Position Alignment Range
      1. Set a new exhaust pipe clamp to the converter with catalyst assembly.
        NOTE:

        Make sure the end of the exhaust pipe clamp does not open 140 mm (5.51 in.) or more (standard amount approximately 60 mm (2.36 in.)).

      2. Temporarily install a new nut to the exhaust pipe clamp.
      3. Temporarily install the converter with catalyst assembly to the manifold stay with the nut.
        NOTE:

        Tighten the nut by hand until it contacts the surface.

      4. Align the converter with catalyst assembly with the knock hole on the turbocharger sub-assembly side to connect the converter with catalyst assembly.
        NOTE:

        Make sure that there is a knock pin on the converter with catalyst assembly.

      5. Align the flange surfaces of the turbocharger sub-assembly and converter with catalyst assembly, and then temporarily install the exhaust pipe clamp.
        NOTE:

        Align the position alignment protrusions on the exhaust pipe clamp side to within the range of the position alignment protrusions on the converter with catalyst assembly side.

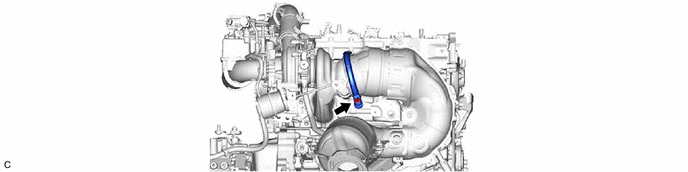

    2. GTY1108602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  3. INSTALL CONVERTER WITH CATALYST ASSEMBLY

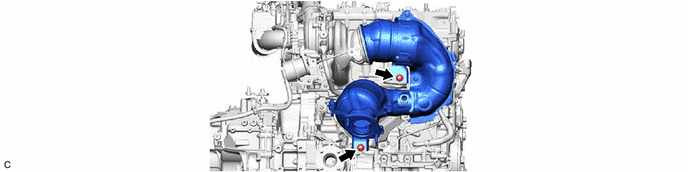

    1. GTY1104367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

  4. INSTALL NO. 1 TURBO INSULATOR

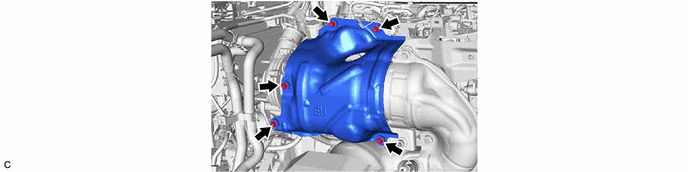

    1. GTY1104366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  5. INSTALL AIR FUEL RATIO SENSOR (for Sensor 2)

    Refer to INSTALLATION [10/2022 - ]

    Specified tightening torque

    Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

  6. INSTALL AIR FUEL RATIO SENSOR (for Sensor 1)

    Refer to INSTALLATION [10/2022 - ]

    Specified tightening torque

    Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

  7. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
