VC Output Circuit [03/2023 - 09/2024]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
- For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to WIRING DIAGRAM

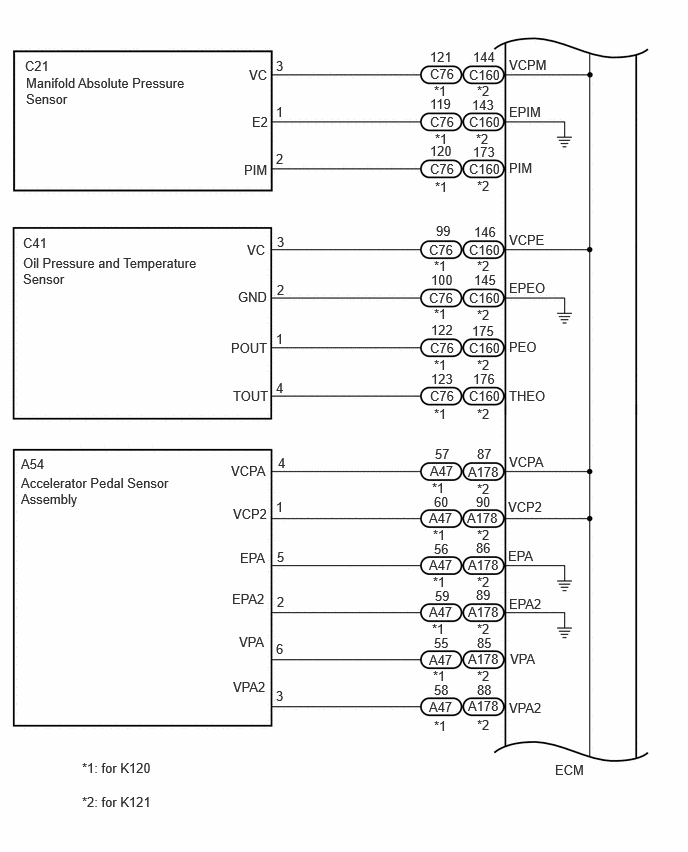

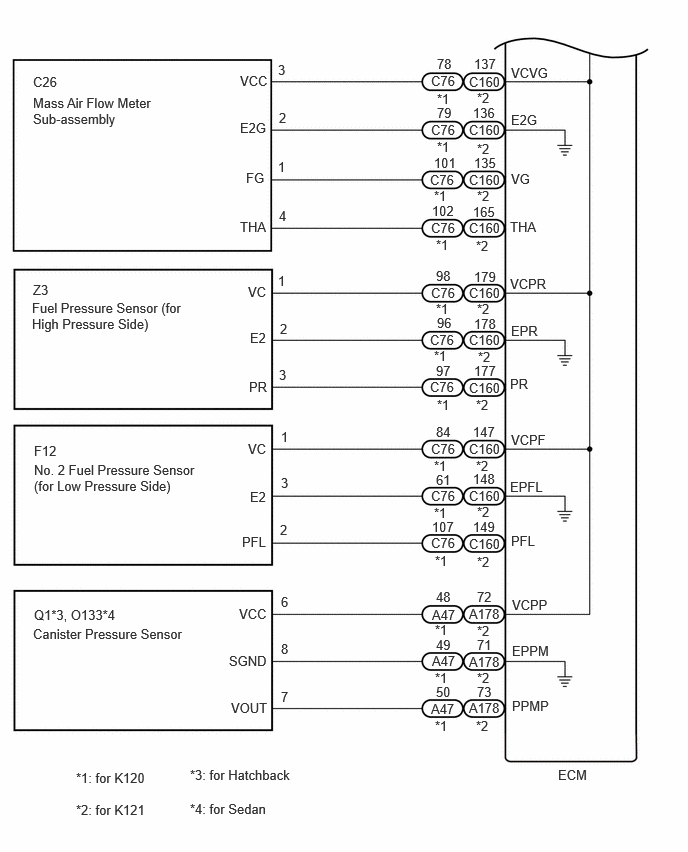

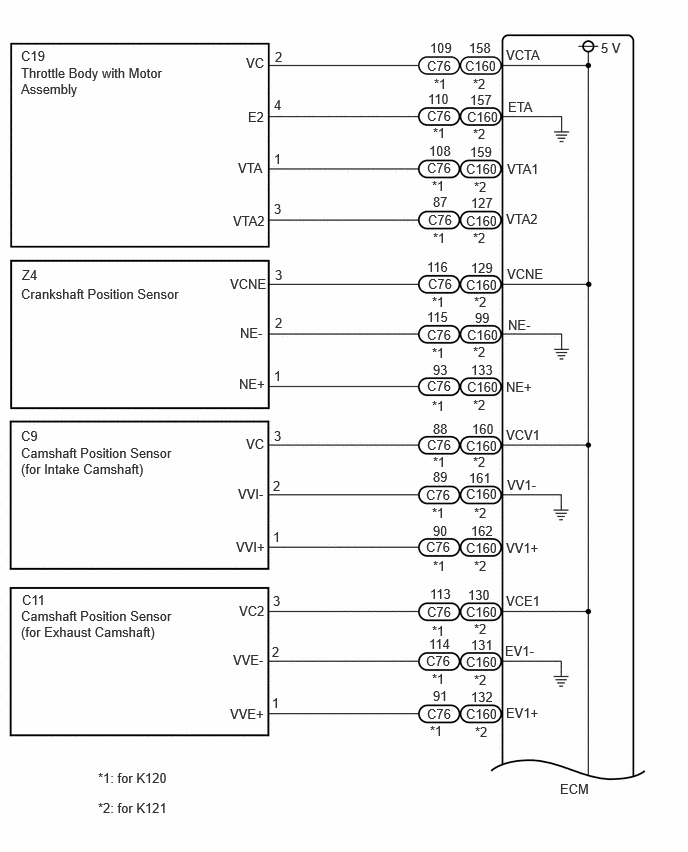

- VC Output Circuit
