ECM Power Source Circuit [03/2023 - 09/2024]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

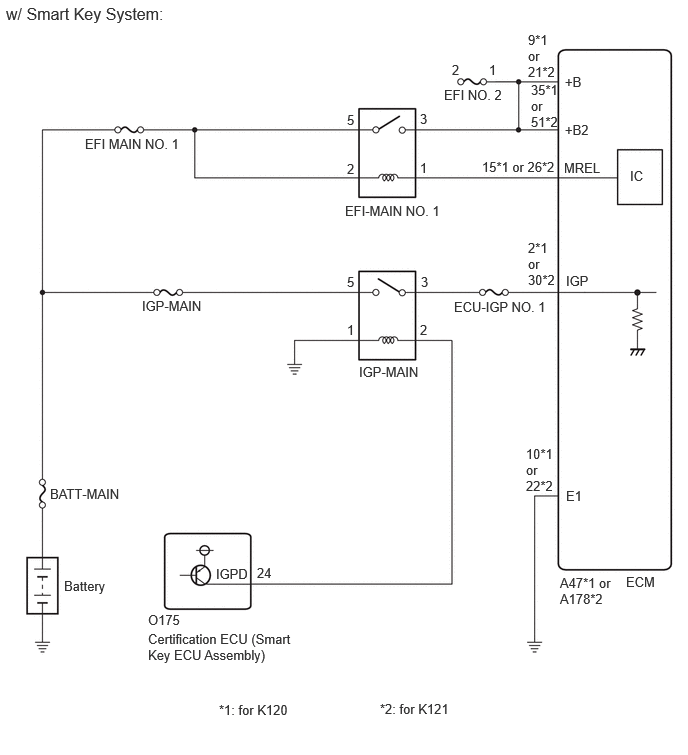

GTY1181193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1181031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
