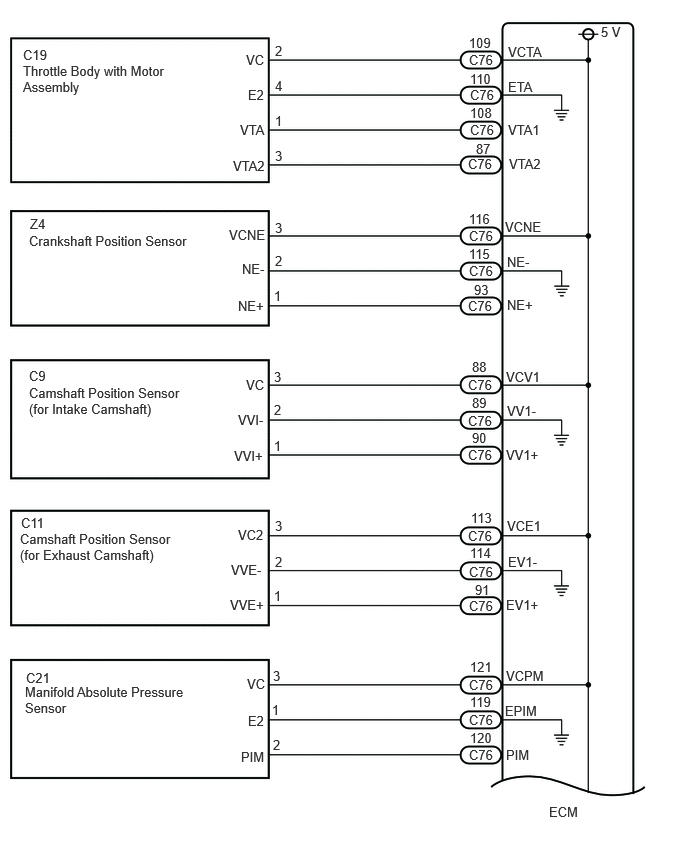

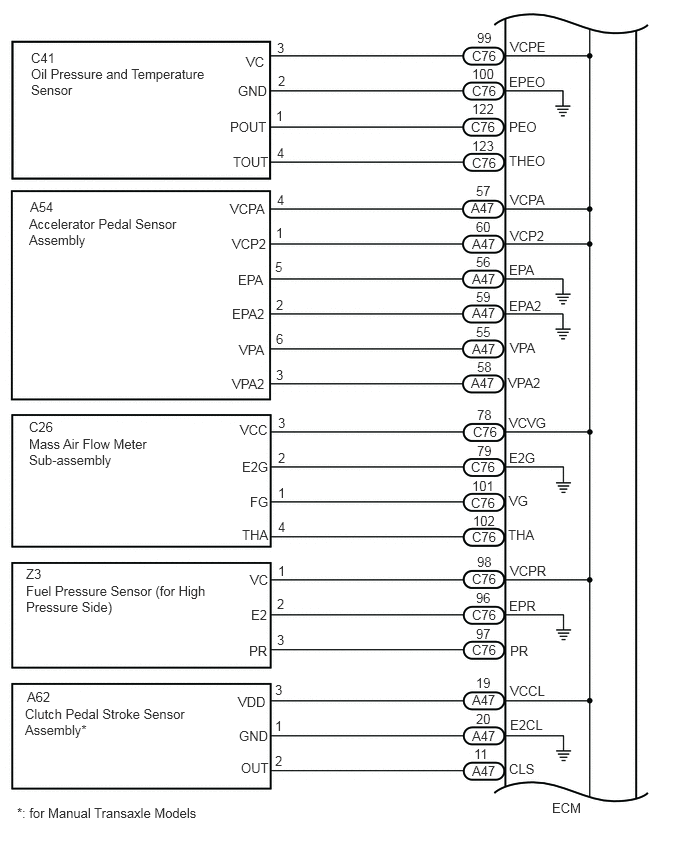

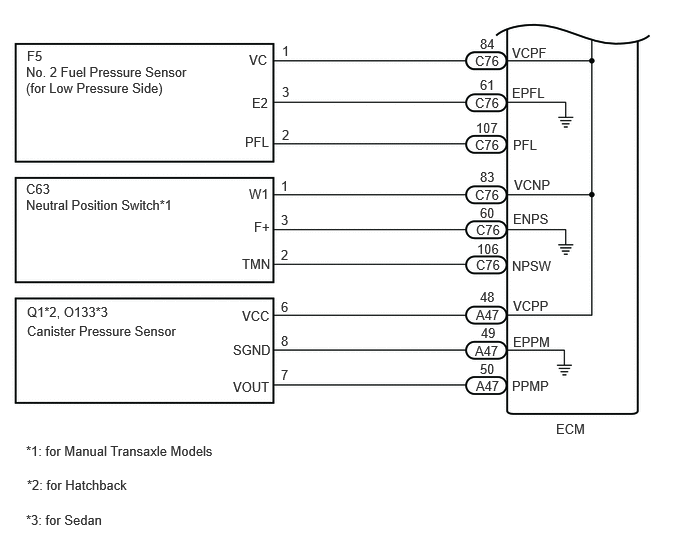

VC Output Circuit [09/2022 - 11/2022]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
- For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to WIRING DIAGRAM
- VC Output Circuit
