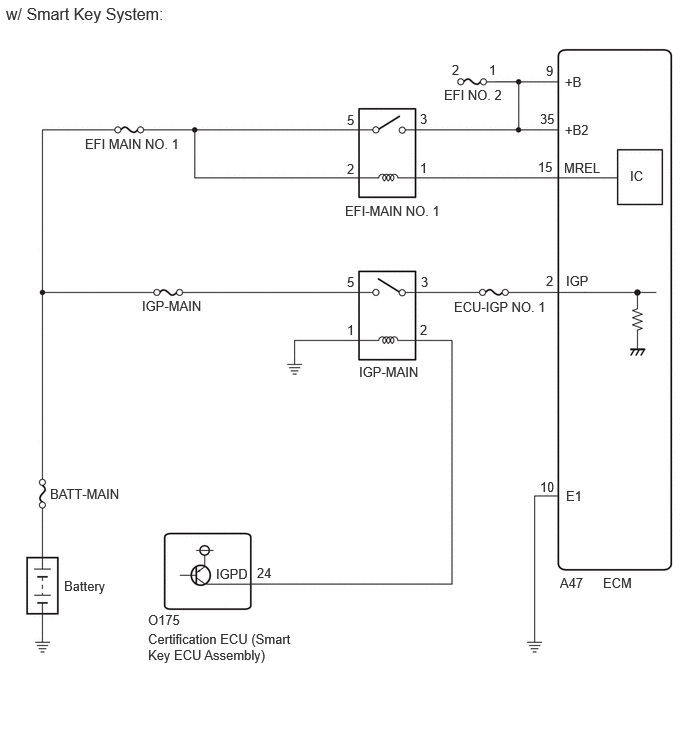

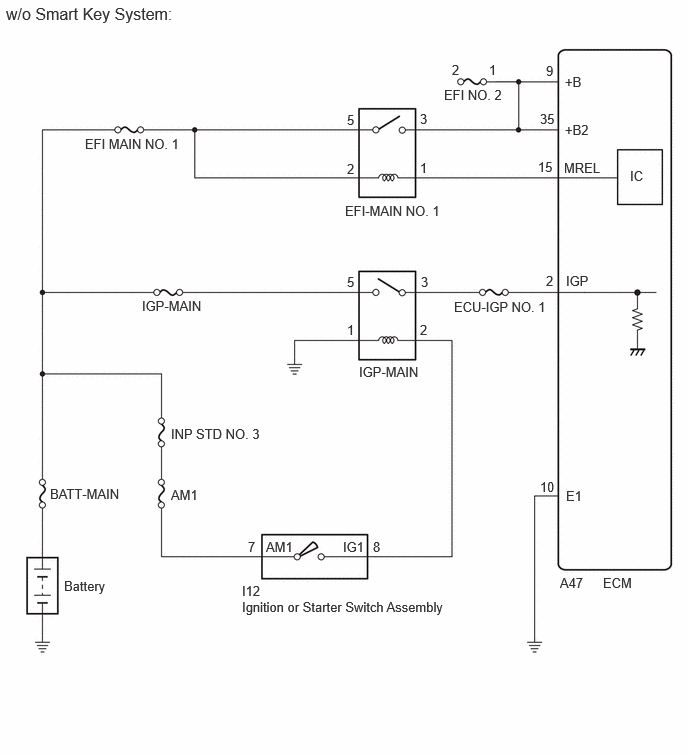

ECM Power Source Circuit [09/2022 - 11/2022]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
for TMMMS Made
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
for TMC Made
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
for TMC Made
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
