Removal [12/2015 - ]: Procedure

REMOVE FRONT DRIVE SHAFT ASSEMBLY LH
(Refer to REMOVAL [12/2015 - 08/2016] , or refer to REMOVAL [08/2016 - ] )
REMOVE EXHAUST MANIFOLD TO HEAD GASKET
(Refer to REMOVAL [12/2015 - 08/2016] , or refer to REMOVAL [08/2016 - ] )
REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET
Refer to PROCEDURE - Step 47 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 44 [08/2016 - ]
REMOVE FRONT EXHAUST PIPE ASSEMBLY
Refer to PROCEDURE - Step 4 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - ]

REMOVE FRONT STABILIZER LINK ASSEMBLY LH

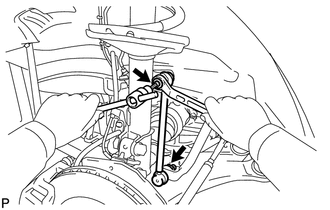

Remove the 2 nuts and front stabilizer link assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud bolt.

REMOVE FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure as the LH side.

REMOVE FRONT NO. 1 STABILIZER BRACKET LH

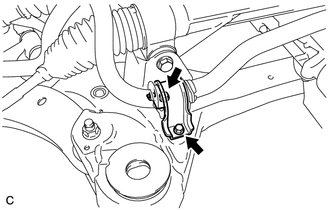

Remove the 2 bolts and front No. 1 stabilizer bracket LH from the front frame assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT NO. 1 STABILIZER BRACKET RH
HINT:

Perform the same procedure as the LH side.

REMOVE FRONT NO. 2 STABILIZER BRACKET LH

Remove the front No. 2 stabilizer bracket LH from the front stabilizer bar bushing.

REMOVE FRONT NO. 2 STABILIZER BRACKET RH
HINT:

Perform the same procedure as the LH side.
REMOVE FRONT NO. 1 STABILIZER BAR BUSHING
1. Remove the 2 front No. 1 stabilizer bar bushings from the front stabilizer bar.

REMOVE FRONT STABILIZER BAR

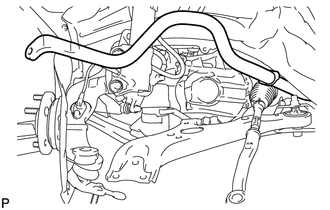

Remove the front stabilizer bar from the left side of the vehicle.
