Removal [08/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [08/2016 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2016 - 11/2017] Refer to INITIALIZATION [11/2017 - ]

  3. REMOVE FRONT AIR CONDITIONING UNIT

    Refer to REMOVAL [08/2016 - ]

  4. REMOVE BATTERY

    Refer to PROCEDURE - Step 19

  5. REMOVE AIR CLEANER INLET ASSEMBLY

    Refer to PROCEDURE - Step 20

  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 4

  7. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  8. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23

  9. REMOVE AIR CLEANER BRACKET

    Refer to PROCEDURE - Step 24

  10. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

    Refer to REMOVAL [08/2016 - ]

  11. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
    1. Remove the 2 nuts and front No. 1 floor heat insulator.
      GTY727598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

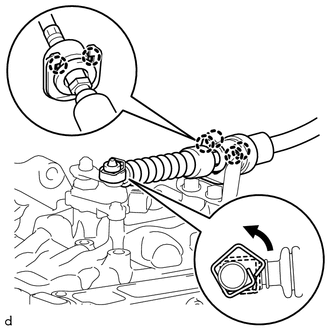

    1. Remove the transmission control cable assembly from the control shaft lever as shown in the illustration.
      GTY706345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disengage the 4 claws, disconnect the transmission control cable with clip from the transmission control cable bracket.
    3. Remove the 2 clips from the transmission control cable.
    4. Disconnect the end of the transmission control cable from the shift lever.
      GTY727597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver, pull out the transmission control cable stopper.
      GTY727596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not remove the stopper. If the stopper is removed, reinstall it to its original position.

    6. Rotate the nut counterclockwise approximately 270° and, while holding the nut in that position, disconnect the transmission control cable from the shift lever retainer.
      GTY727595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 3 bolts and pull out the transmission control cable from the body.
      GTY727599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
