Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
1. When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [12/2015 - 08/2016] ).
REMOVE FRONT AIR CONDITIONING UNIT
(Refer to REMOVAL [12/2015 - 08/2016] )
REMOVE AIR CLEANER INLET ASSEMBLY
Refer to PROCEDURE - Step 25
REMOVE BATTERY
Refer to PROCEDURE - Step 26
REMOVE AIR CLEANER AND HOSE
Refer to PROCEDURE - Step 7
REMOVE EXHAUST MANIFOLD ASSEMBLY RH
(Refer to REMOVAL [12/2015 - 08/2016] )

REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

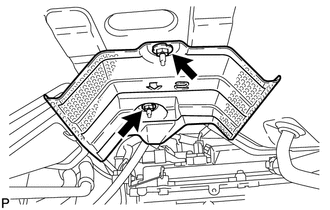

Remove the 2 nuts and front No. 1 floor heat insulator.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

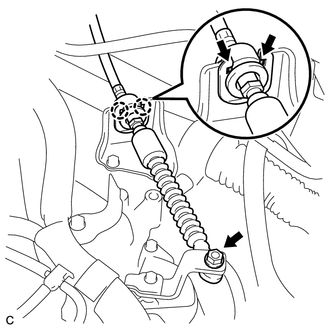

Remove the nut from the control shaft lever.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

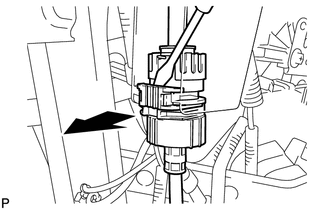

Using a screwdriver, disengage the 4 claws, disconnect the transmission control cable with clip from the transmission control cable bracket.
Remove the clip from the transmission control cable.

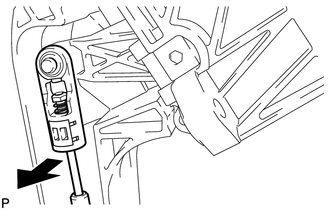

Disconnect the end of the transmission control cable from the shift lever.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, pull out the transmission control cable stopper.

NOTE:

Do not remove the stopper. If the stopper is removed, reinstall it to its original position.

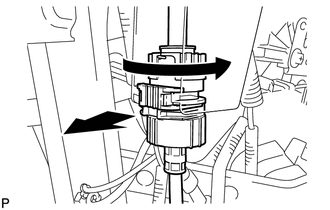

Rotate the nut counterclockwise approximately 270° and, while holding the nut in that position, disconnect the transmission control cable from the shift lever retainer.

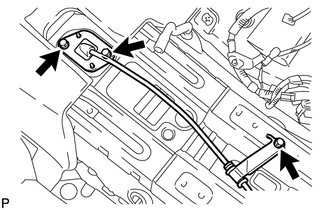

Remove the 3 bolts and pull out the transmission control cable from the body.
