Installation [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TCM

Install the TCM onto the automatic transaxle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

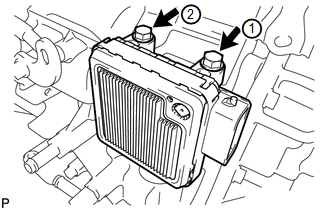

Install and tighten the 2 bolts in the order shown in the illustration.
Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)

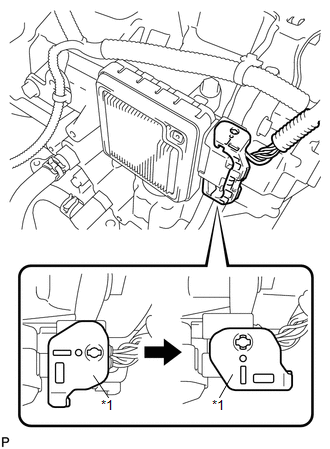

Connect the connector.

TEXT IN ILLUSTRATION

*1	Lock Lever

Turn the lock lever and secure the connector with the lock lever.

INSTALL BATTERY
Refer to PROCEDURE - Step 61
INSTALL AIR CLEANER INLET ASSEMBLY
Refer to PROCEDURE - Step 62
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
1. When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [12/2015 - 08/2016] ).
CHECK AUTOMATIC TRANSAXLE SYSTEM
NOTE:
If automatic transaxle parts are replaced, refer to Parts Replacement Compensation Table to determine if any additional operations are necessary (Refer to PRECAUTION [12/2015 - 08/2016] ).
