Installation [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL OXYGEN SENSOR (for Bank 1 Sensor 2)

for 2WD:

Using SST, install the oxygen sensor (for bank 1 sensor 2) to the front exhaust pipe assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

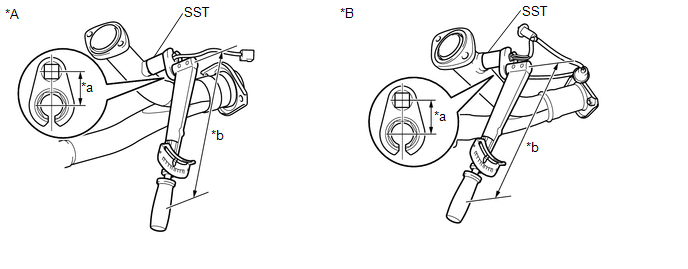

TEXT IN ILLUSTRATION

*A	for 2WD
*B	for AWD
*a	Fulcrum Length of SST
*b	Fulcrum Length of Torque Wrench

SST: 09224-00010

Specified tightening torque

Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

NOTE:

If a component has been dropped or subjected to a strong impact, replace oxygen sensor (for bank 1 sensor 2).

HINT:

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench (Refer to PRECAUTION [12/2015 - 08/2016] ).
When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 300 mm (11.8 in.)): 40 N*m (408 kgf*cm, 30 ft.*lbf).

for AWD:
1. Using SST, install the oxygen sensor (for bank 1 sensor 2) to the No. 3 exhaust pipe sub-assembly.
  - SST: 09224-00010
  Specified tightening torque

  Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

  NOTE:
  If a component has been dropped or subjected to a strong impact, replace oxygen sensor (for bank 1 sensor 2).

  HINT:
  - Calculate the torque wrench reading when changing the fulcrum length of the torque wrench (Refer to PRECAUTION [12/2015 - 08/2016] ).
  - When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 300 mm (11.8 in.)): 40 N*m (408 kgf*cm, 30 ft.*lbf).

INSTALL NO. 2 OXYGEN SENSOR (for Bank 2 Sensor 2)

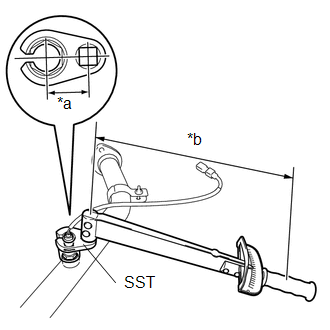

Using SST, install the No. 2 oxygen sensor (for bank 2 sensor 2) to the front exhaust pipe assembly.
