Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    (Refer to REMOVAL [12/2015 - ] )

  2. REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  3. REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL

    See step  6

  4. REMOVE AIR CLEANER AND HOSE

    See step  7

  5. REMOVE ECM

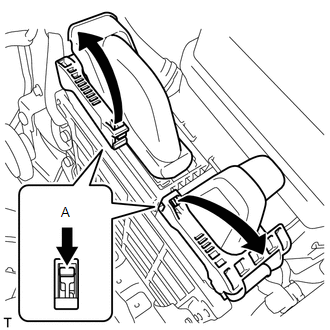

    1. While slightly pushing portion A of the lever of the ECM connector, turn the lever until it makes a click sound.
      GTY453692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 ECM connectors.
      NOTE:

      After disconnecting the connectors, make sure that dirt, water or other foreign matter does not contact the connecting part of the connectors.

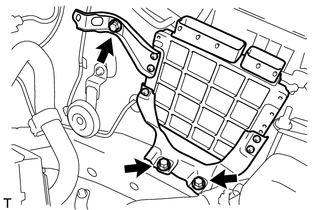

    3. Remove the 3 bolts and the ECM with the brackets.
      GTY441446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ECM BRACKET
    1. Remove the 2 screws and the ECM bracket.
      GTY441444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 ECM BRACKET
    1. Remove the 3 screws and the No. 2 ECM bracket.
      GTY439179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
