Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [12/2015 - 08/2016] ).

  2. REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL

    Refer to PROCEDURE - Step 25

  3. REMOVE BATTERY

    Refer to PROCEDURE - Step 26

  4. REMOVE AIR CLEANER AND HOSE

    Refer to PROCEDURE - Step 7

  5. REMOVE STARTER ASSEMBLY

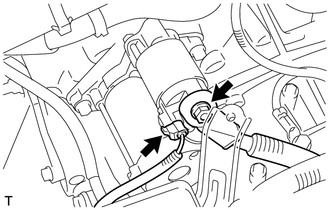

    1. Disconnect the starter connector.
      GTY301143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the terminal cap.
    3. Remove the nut and disconnect the terminal 30.

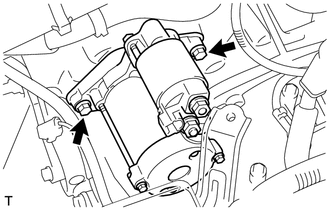

    4. Remove the 2 bolts and the starter assembly.
      GTY306777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
